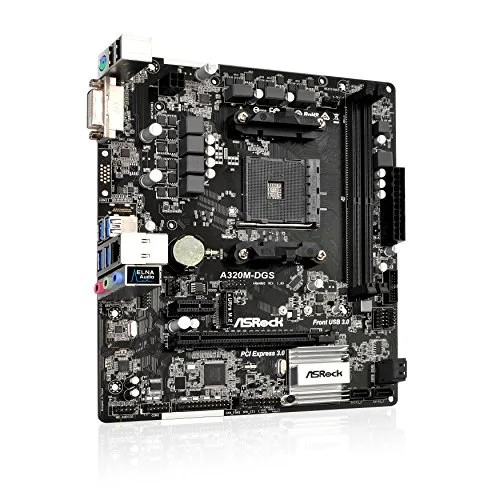

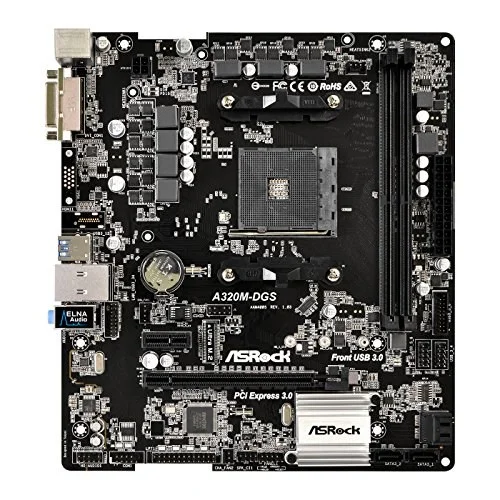

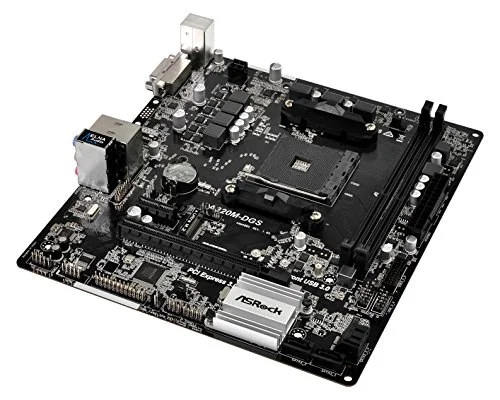

ASRock A320M-DGS

ASRock A320M-DGS AM4 Micro-ATX DDR4 32 GB Motherboard

ASRock Motherboard $69.43

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetA320

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock A320M-DGS is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).

Micro ATX
ASRock Super Alloy
Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)
1 PCIe 3.0 x16, 1 PCIe 2.0 x1
Graphics Output:DVI-D
7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
6 USB 3.1 Gen1 (2 Front, 4 Rear)
Realtek Gigabit LAN

Manufacturer	ASRock
Model Number	A320M-DGS
Launch Date	March 2018
CPU Socket	AMD Socket AM4
Chipset Model	Intel A320
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	32 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	A320M-DGS
SKU Code	A320M-DGS
GTIN / EAN	4717677333237
