ASRock A320M-HDV R4.0

ASRock A320M-HDV R4.0 AM4 Micro-ATX DDR4 32 GB Motherboard

ASRock Motherboard $31.04

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetA320

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

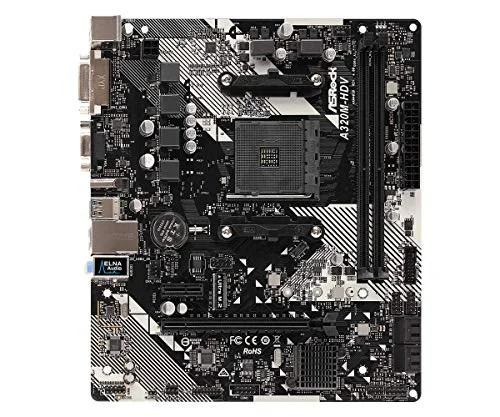

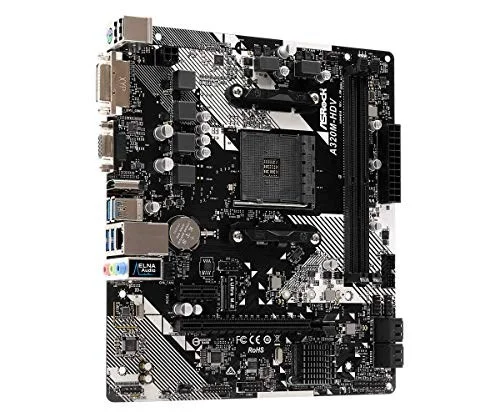

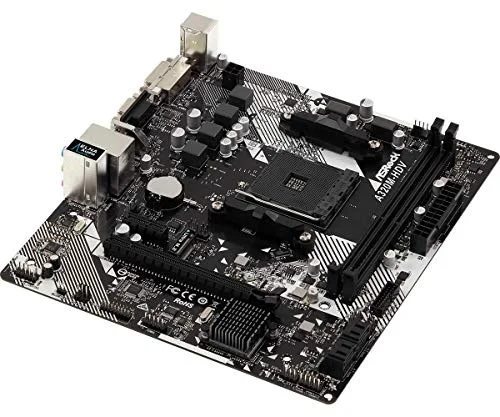

The ASRock A320M-HDV R4.0 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).

Chipset: AMD Promontory A320
Cpu: Socket AM4
Slots: 4X PCI-Express 3.0 X16 Slots, 1X PCI-Express 2.0 X1 Slot
4X SATA3 Ports, Support RAID 0, 1, 10, NCQ, AHCI And Hot Plug
M.2: 1X Ultra M.2 Port (M Key), Supports Type 2242/ 2260/ 2280 M.2 SATA3 & M.2 PCI-Express 3.0 X4 (32 Gb/S) (With Summit Ridge, Raven Ridge And Pinnacle Ridge)

Manufacturer	ASRock
Model Number	A320M-HDV R4.0 90-MXB9L0-A0UAYZ
Launch Date	February 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel A320
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	32 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	A320M-HDV R4.0
SKU Code	A320M-HDV R4.0
GTIN / EAN	4717677337648
