ASRock A520M/AC

ASRock A520M/AC AM4 Micro-ATX DDR4 64 GB Motherboard

ASRock Motherboard $99.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetA520

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

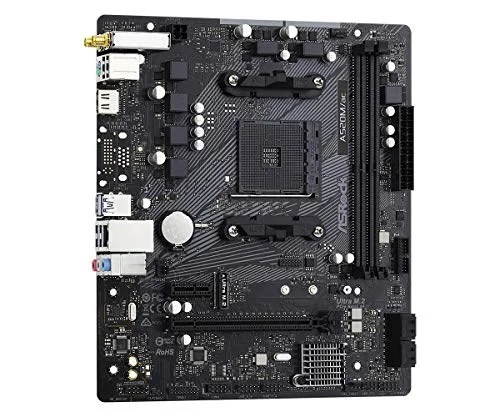

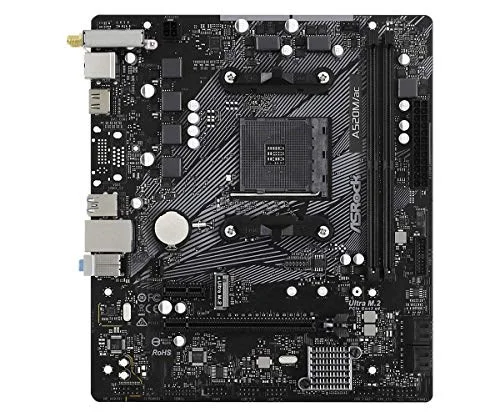

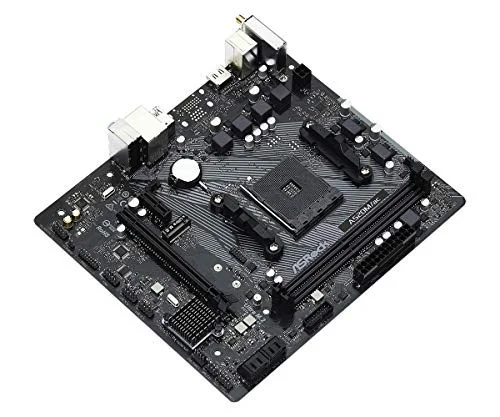

The ASRock A520M/AC is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4733 MT/s (OC).

Supports 3Rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors (3000 And 4000 Series Processors)
6 Phase Power Design
Supports DDR4 4733+ (OC)
1 X Pcie 3.0 X16, 1 X Pcie 3.0 X1
Graphics Output Options: HDMI

Manufacturer	ASRock
Model Number	A520M/AC
Launch Date	August 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel A520
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4666 / DDR4-4733 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	A520M/AC
SKU Code	A520M/AC
GTIN / EAN	4710483932328
