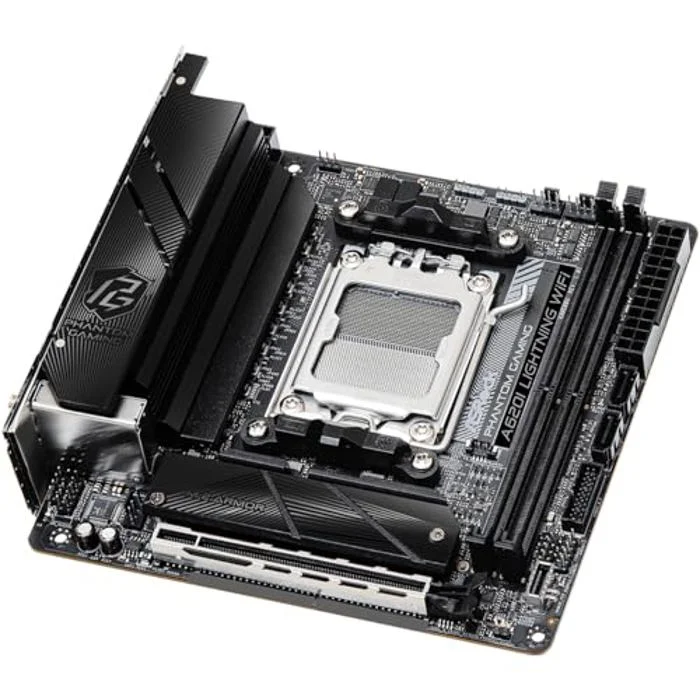

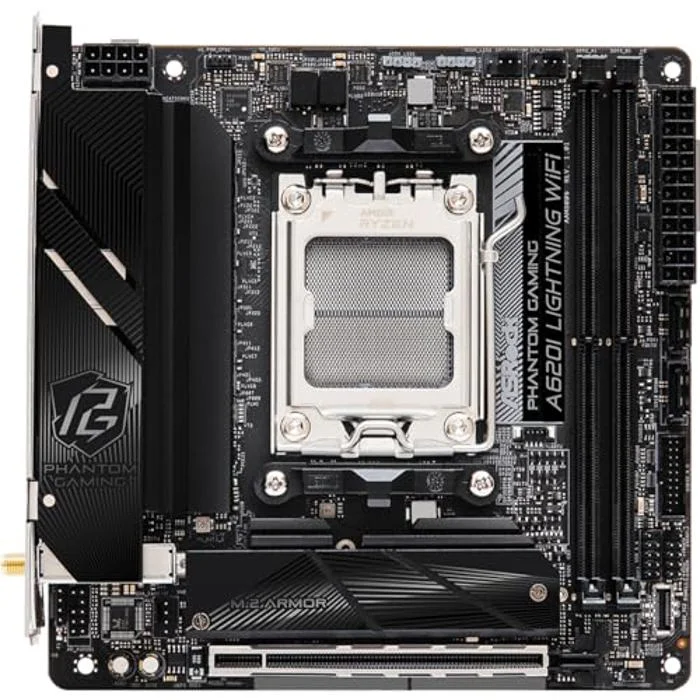

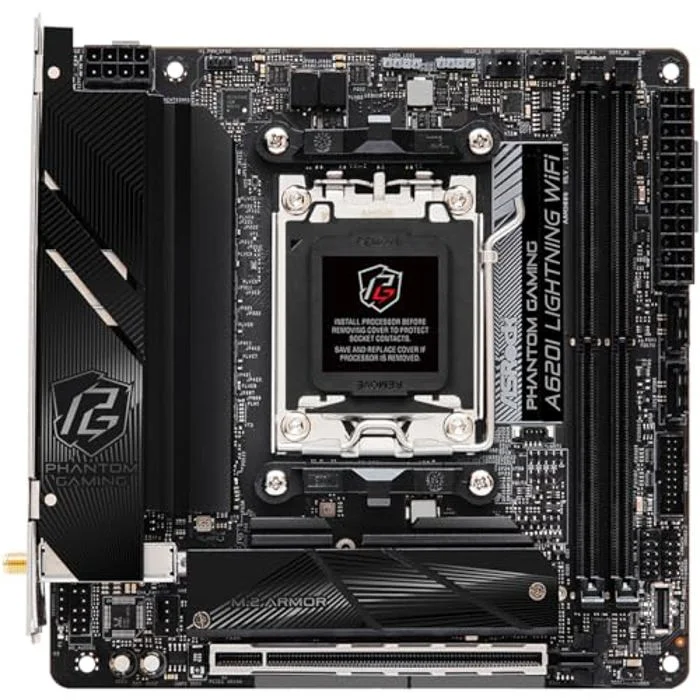

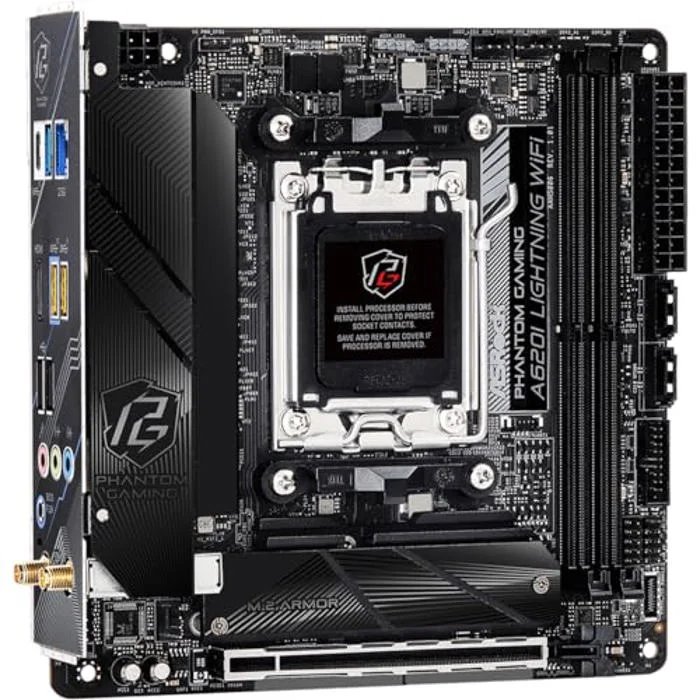

ASRock A620I LIGHTNING WIFI

ASRock A620I LIGHTNING WIFI AM5 Mini-ITX DDR5 96 GB Motherboard

ASRock Motherboard $119.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetA620

Form FactorMini-ITX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock A620I LIGHTNING WIFI is a Mini-ITX motherboard for AM5. It supports DDR5 memory up to 7200 MT/s (OC).

ASRock 620I LIGHTNING WIFI AM5 Ryzen7000 AMD A620 SATA 6Gb/s Mini-ITX Dual Channel DDR5 - 2.5G LAN, 802.11ax Wi-Fi 6E Module PCIe 4.0 x16 Slot Motherboards - AMD Number of Memory Slots: Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 96GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules Memory Standard: DDR5 6400 Audio Channels: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio Max LAN Speed: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG

Manufacturer	ASRock
Model Number	A620I LIGHTNING WIFI 90-MXBMN0-A0UAYZ
Launch Date	N/A
CPU Socket	AM5
Chipset Model	Intel A620
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR5
DIMM Slots	2
Maximum RAM Capacity	96 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2230 - E Key
SATA III Ports	2 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

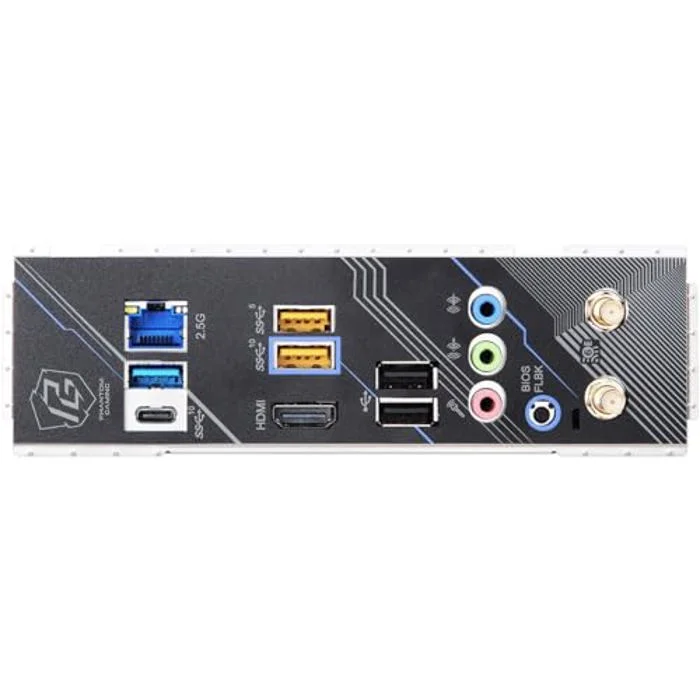

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	A620I LIGHTNING WIFI
SKU Code	A620I LIGHTNING WIFI
GTIN / EAN	4710483944246
