ASRock AB350M PRO4

ASRock AB350M PRO4 AM4 Micro-ATX DDR4 64 GB Motherboard

ASRock Motherboard $77.56

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB350

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

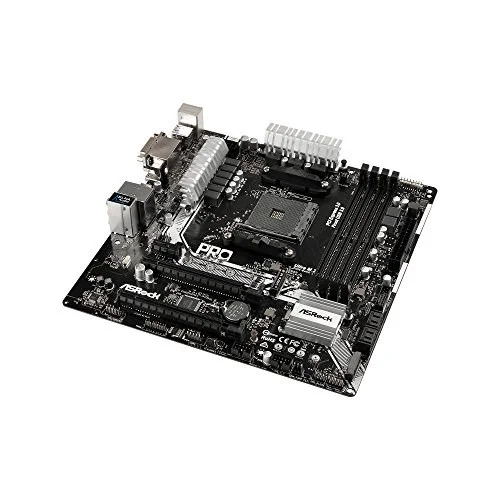

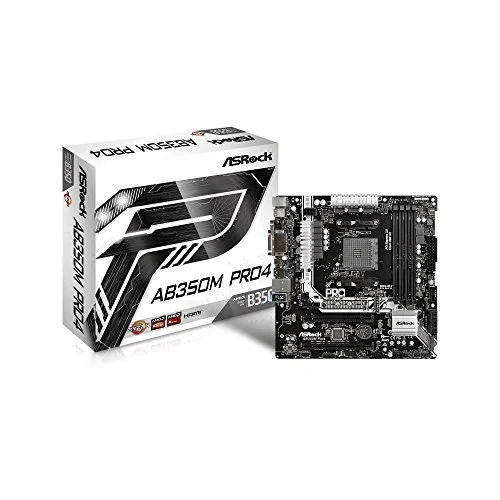

The ASRock AB350M PRO4 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).

Chipset: AMD Promontory B350
Memory: 4x DDR4-2667/2400/2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB
Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x4), 1x PCI-Express 2.0 x1 Slot
SATA: 4x SATA3 Ports, Support RAID 0, 1, 10
Video: Integrated AMD Radeo R-Series Graphics in A-series APU
Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)

Manufacturer	ASRock
Model Number	AB350M PRO4
Launch Date	May 2017
CPU Socket	AMD Socket AM4
Chipset Model	Intel B350
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	AB350M PRO4
SKU Code	AB350M PRO4
GTIN / EAN	4717677333176
