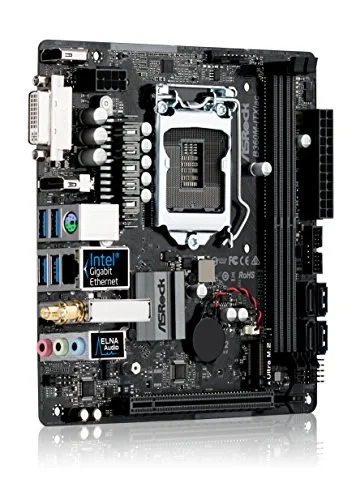

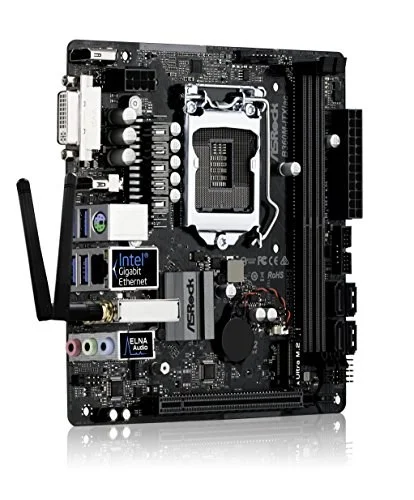

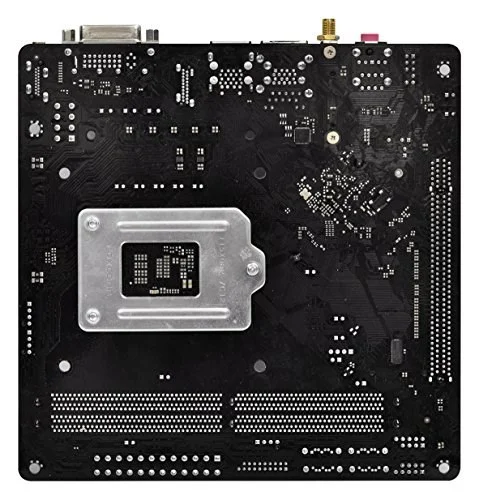

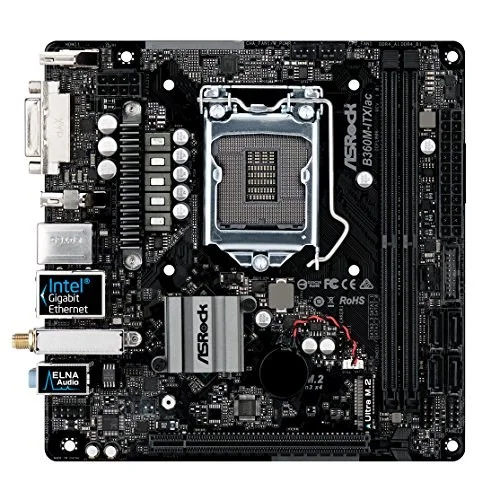

ASRock B360M-ITX/AC

ASRock B360M-ITX/AC LGA1151 Mini-ITX DDR4 32 GB Motherboard

ASRock Motherboard $98.28

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetB360

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock B360M-ITX/AC is a Mini-ITX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).

2x DDR4-2666/2400/2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
1x PCI-Express 3.0 x16 Slot, 1x Vertical M.2 Socket (Key E)
4x SATA3 Ports, Support NCQ, AHCI and Hot Plug
1x Ultra M.2 Port, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Realtek ALC887 7.1-Channel High Definition Audio CODEC

Manufacturer	ASRock
Model Number	B360M-ITX/AC
Launch Date	May 2018
CPU Socket	LGA1151
Chipset Model	Intel B360
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	32 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2280 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B360M-ITX/AC
SKU Code	B360M-ITX/AC
GTIN / EAN	4717677335163
