ASRock B450 GAMING-ITX/AC

ASRock B450 GAMING-ITX/AC AM4 Mini-ITX DDR4 32 GB Motherboard

ASRock Motherboard $105.9

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

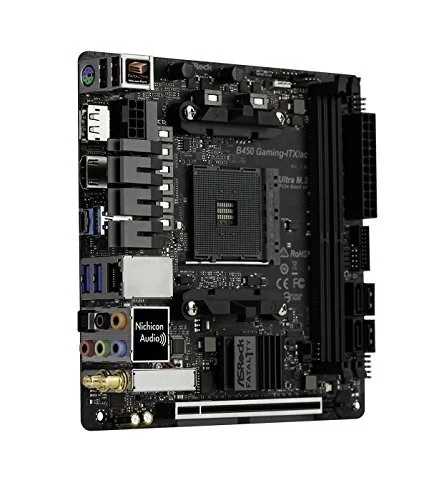

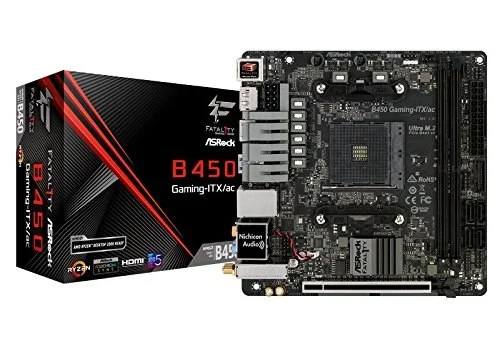

The ASRock B450 GAMING-ITX/AC is a Mini-ITX motherboard for AM4. It supports DDR4 memory up to 3466 MT/s (OC).

Socket AM4, Digi Power design, 8 Power Phase design, Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
Chipset: AMD Promontory B450
Memory: 2x DDR4-3466+(OC)/3200(OC)/2933/2667/2400/2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 32GB (AMD Ryzen series CPUs(Pinnacle Ridge))
Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8)
SATA: 4x SATA3 Ports, Support RAID 0, 1, 10, NCQ, AHCI and Hot Plug

Manufacturer	ASRock
Model Number	B450 GAMING-ITX/AC Fatal1ty B450 Gaming-ITX/ac
Launch Date	August 2018
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	32 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2280 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5

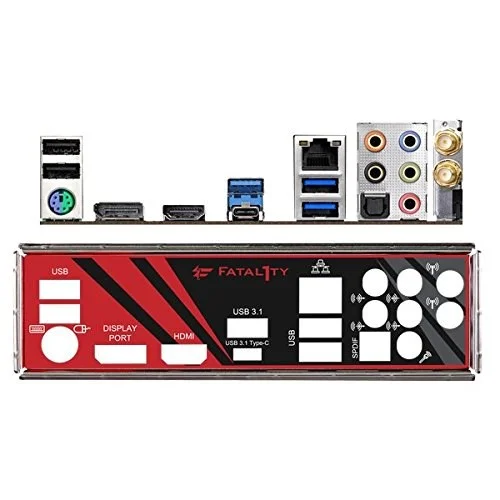

Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450 GAMING-ITX/AC
SKU Code	B450 GAMING-ITX/AC
GTIN / EAN	4717677336238
