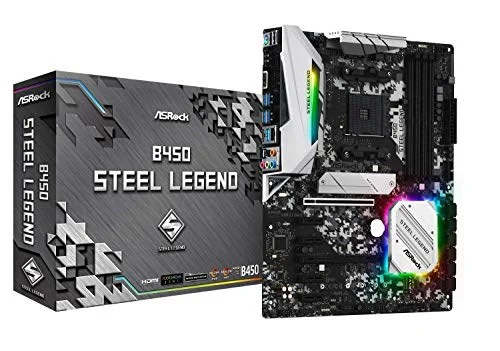

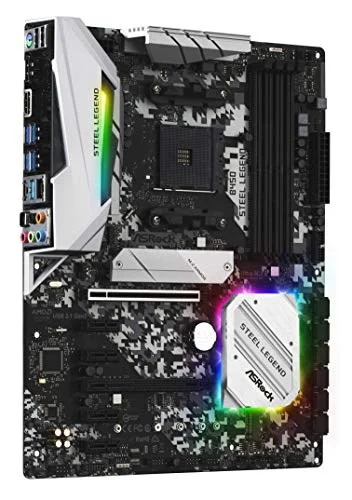

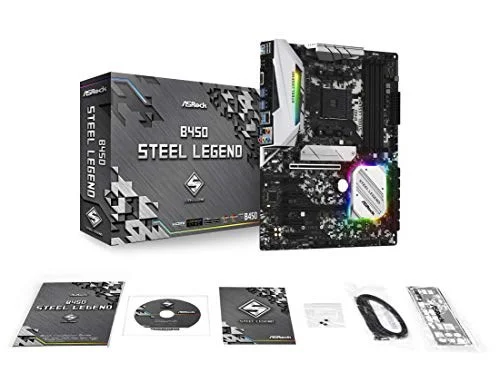

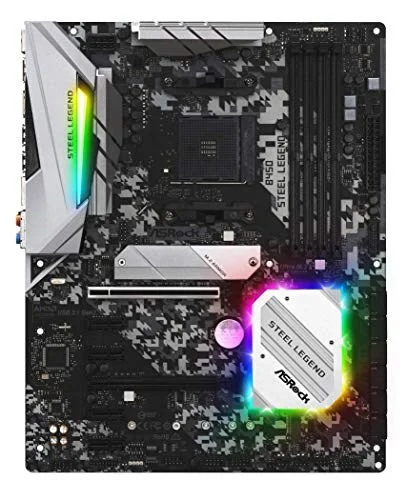

ASRock B450 Steel Legend

ASRock B450 Steel Legend AM4 ATX DDR4 128 GB Motherboard

ASRock Motherboard $95.9

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock B450 Steel Legend is a ATX motherboard for AM4. It supports DDR4 memory up to 3466 MT/s (OC).

CPU: Socket AM4, Digi Power Design, 6 Power Phase Design, Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
Chipset: AMD Promontory B450. OS - Microsoft Windows 10 64-Bit
Slots: 6X PCI-Express 3.0 X16 Slots (One Run At X8, Three Runs At X4, One Run At X2), 4X PCI Express 2.0 X1 Slots
Supports DDR4 3533+ (OC)
6 SATA3, 1 Ultra M.2 (Pcie Gen3 X4), 1 M.2 (Pcie Gen3 X2 & SATA3)

Manufacturer	ASRock
Model Number	B450 STEEL LEGEND
Launch Date	March 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 4 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	4
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2230 / 2242 / 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450 STEEL LEGEND
SKU Code	B450 STEEL LEGEND
GTIN / EAN	4717677338065
