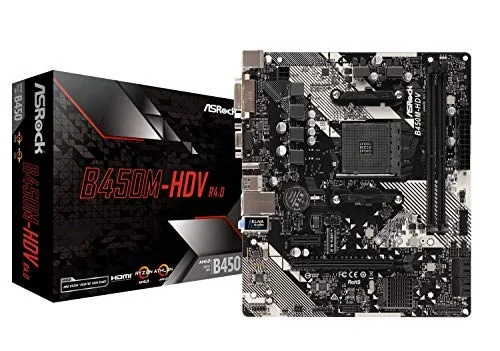

ASRock B450M-HDV R4.0

ASRock B450M-HDV R4.0 AM4 Micro-ATX DDR4 32 GB Motherboard

ASRock Motherboard $46.9

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

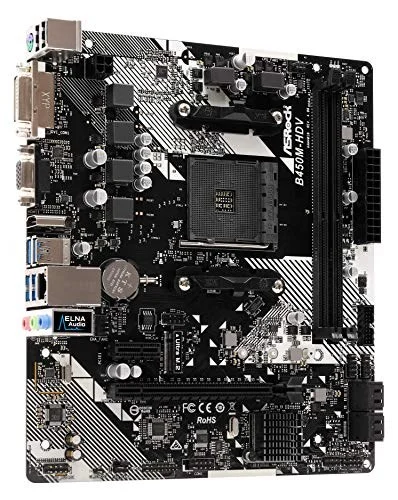

The ASRock B450M-HDV R4.0 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).

Cup: socket AM4, 6 power Phase design, supports CPU up to 105W
Chipset: AMD Promontory B450
Slots: 3x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x4), 1x PCI Express 2.0 x1 Slot
Audio: Relate ALC887 7.1-Channel High Definition Audio CODEC
LAN: Relate RTL8111H PCIE x1 Gigabit Ethernet Controller

Manufacturer	ASRock
Model Number	B450M-HDV R4.0 90-MXB9N0-A0UAYZ
Launch Date	February 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	32 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450M-HDV R4.0
SKU Code	B450M-HDV R4.0
GTIN / EAN	4717677337617
