ASRock B650 LiveMixer

ASRock B650 LiveMixer AM5 ATX DDR5 192 GB Motherboard

ASRock Motherboard $147.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

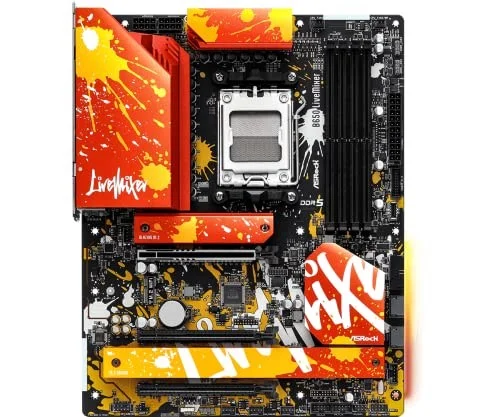

The ASRock B650 LiveMixer is a ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

ASRock B650 LiveMixer AM5 ATX Mainboard , 4 slots DDR5, 3 PCIE 4.0 x16, 3 M.2 slots, 2.5Gb Lan, 7.1 Nahimic Audio , Rear USB3.2 Gen2X2 Type_C , 14+2+1 Power Phase, bios flash back, Amd Crossfire Number of Memory Slots: 4x288pin (DDR5) Memory Standard: Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)* Audio Chipset: Realtek ALC897 Audio Channels: 7.1 Channels Max LAN Speed: 2.5Gbps Maximum Memory Supported: 128GB Channel Supported: Dual Channel CPU Type: Ryzen 7000 Series

Manufacturer	ASRock
Model Number	B650 LiveMixer B650 Live Mixer 90-MXBJ50-A0UAYZ
Launch Date	N/A
CPU Socket	AM5
Chipset Model	Intel B650
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	2 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A

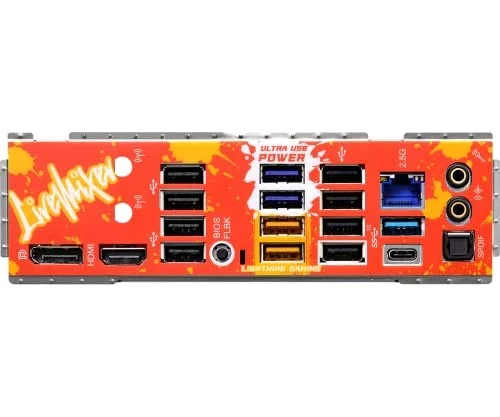

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B650 LiveMixer
SKU Code	B650 LiveMixer
GTIN / EAN	4710483941016
