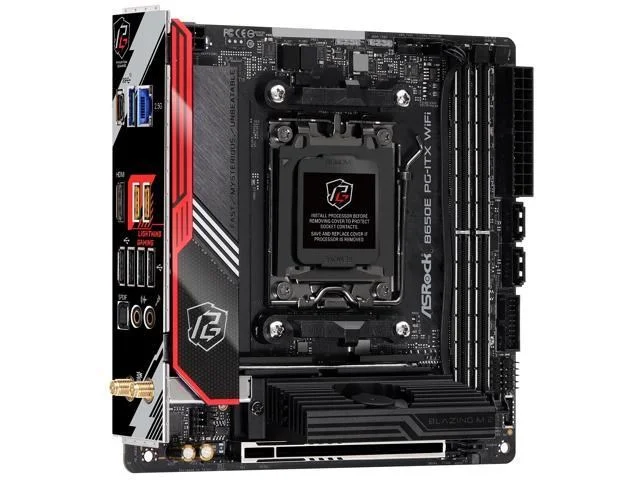

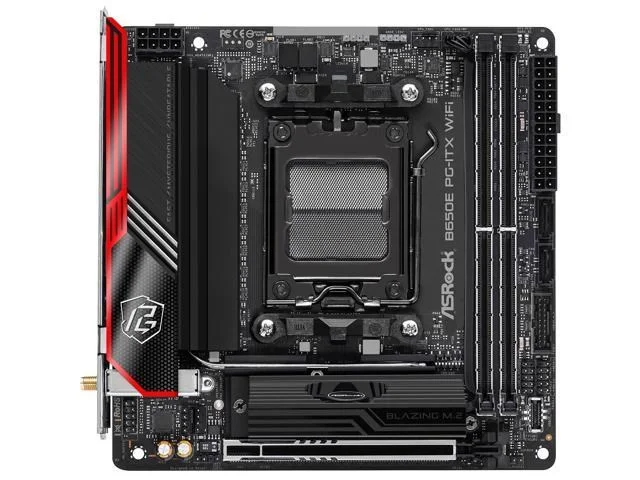

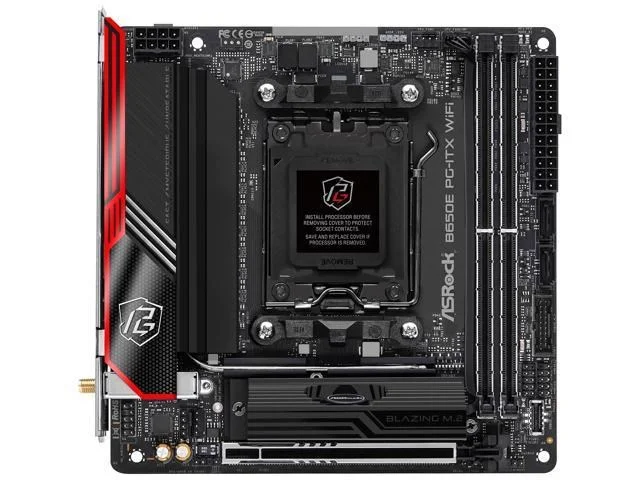

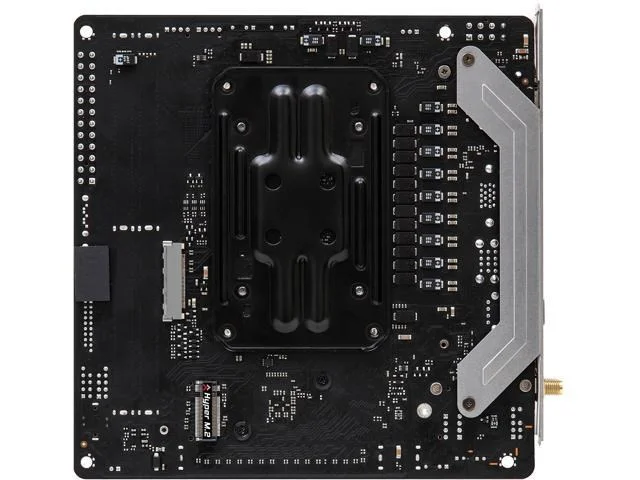

ASRock B650E PG-ITX WIFI

ASRock B650E PG-ITX WIFI AM5 Mini-ITX DDR5 64 GB Motherboard

ASRock Motherboard $224.39

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650E

Form FactorMini-ITX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock B650E PG-ITX WIFI is a Mini-ITX motherboard for AM5. It supports DDR5 memory up to 6200 MT/s (OC).

ASRock B650E PG-ITX WIFI AM5 Ryzen 7000 AMD B650 6.0 Gb/s DDR5 Mini ITX Motherboard Number of Memory Slots: 2x288pin (DDR5) Audio Chipset: Realtek ALC1220 Audio Channels: 7.1 Channels Max LAN Speed: 2.5Gbps Maximum Memory Supported: 64GB Channel Supported: Dual Channel CPU Type: Supports AMD Ryzen 7000 Series Processors ECC Supported: Yes

Manufacturer	ASRock
Model Number	B650E PG-ITX WIFI
Launch Date	N/A
CPU Socket	AM5
Chipset Model	Intel B650E
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR5
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, E-key - E Key
SATA III Ports	2 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

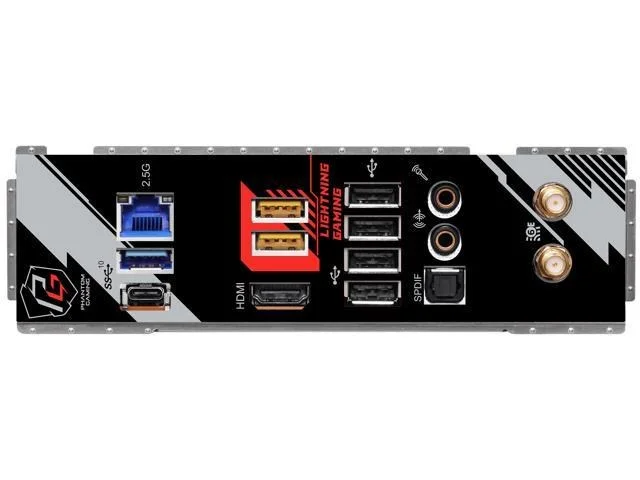

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	0
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B650E PG-ITX WIFI
SKU Code	B650E PG-ITX WIFI
GTIN / EAN	4710483941078
