ASRock B760M Pro RS/D4 WiFi

ASRock B760M Pro RS/D4 WiFi LGA1700 Micro-ATX DDR4 128 GB Motherboard

ASRock Motherboard $114.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB760

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

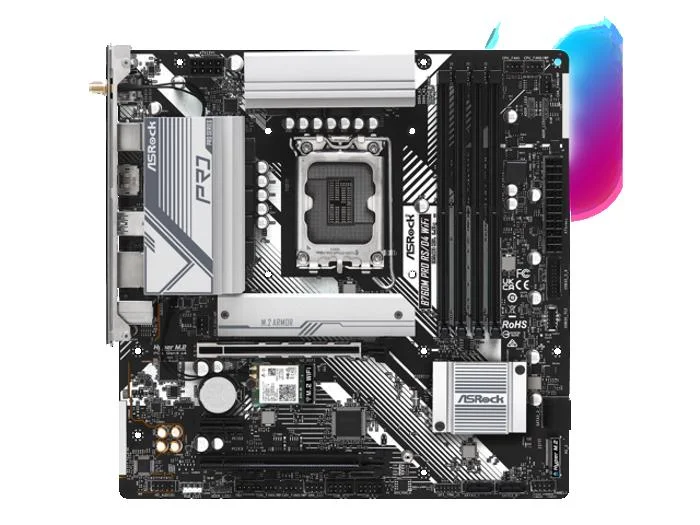

The ASRock B760M Pro RS/D4 WiFi is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 5333 MT/s (OC).

ASRock B760M Pro RS WiFi LGA 1700 DDR4 Micro ATX Motherboard Memory Standard: DDR4 3200 Number of Memory Slots: 4x288pin (DDR4) Audio Chipset: Realtek ALC897 PCI Express 4.0 x16: CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* Max LAN Speed: 2.5Gbps CPU Type: Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) Maximum Memory Supported: 128GB Channel Supported: Dual Channel

Manufacturer	ASRock
Model Number	B760M Pro RS/D4 WiFi
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel B760
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-3200 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-5333 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2280 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

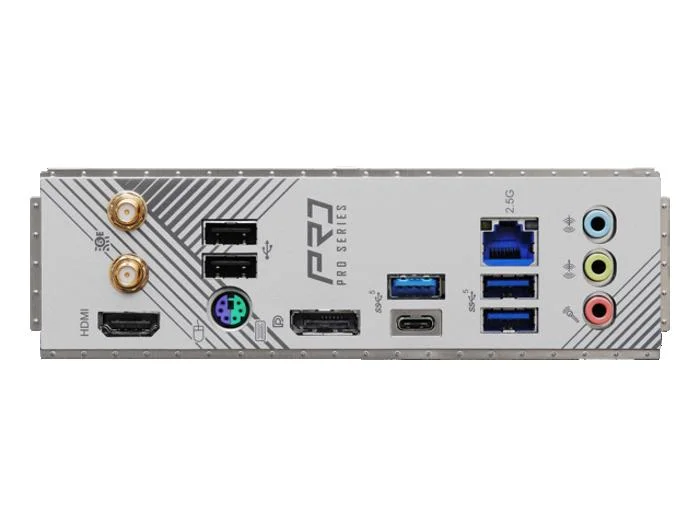

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B760M Pro RS/D4 WiFi
SKU Code	B760M Pro RS/D4 WiFi
GTIN / EAN	4710483941719
