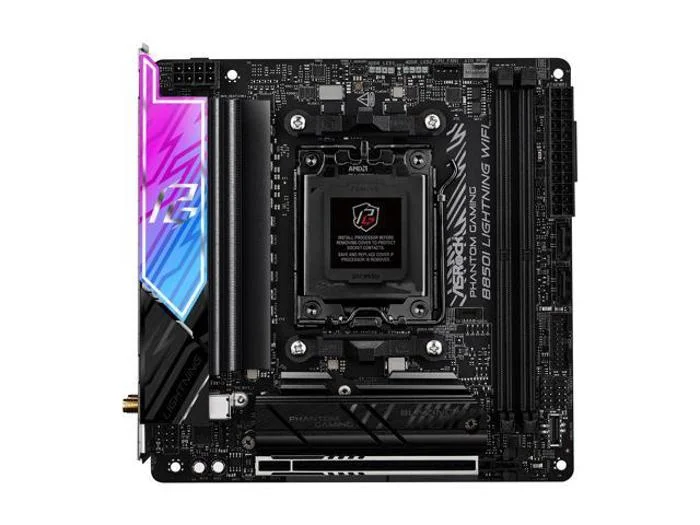

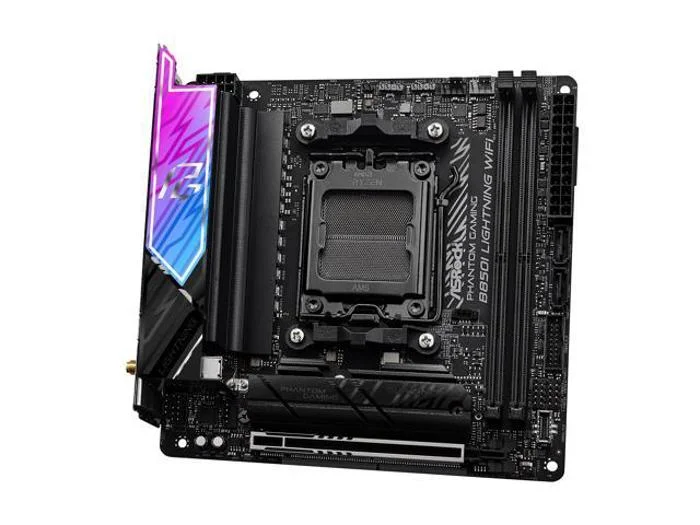

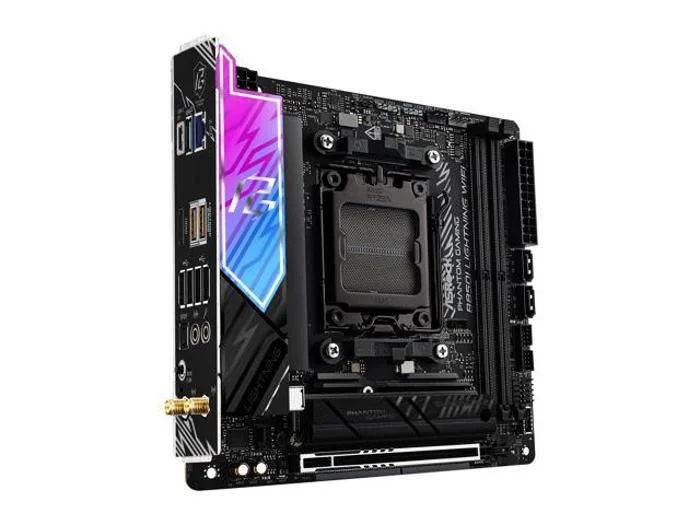

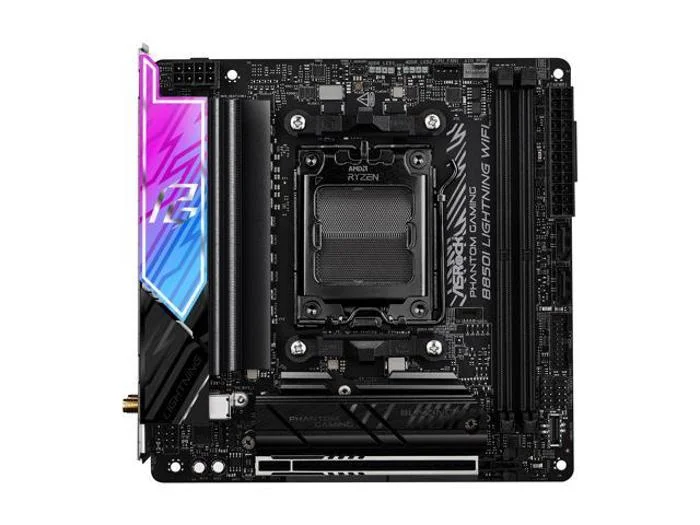

ASRock B850I Lightning WiFi

ASRock B850I Lightning WiFi AM5 Mini-ITX DDR5 128 GB Motherboard

ASRock Motherboard $189.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB850

Form FactorMini-ITX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock B850I Lightning WiFi is a Mini-ITX motherboard for AM5. It supports DDR5 memory up to 8200 MT/s (OC).

ASRock B850I Lightning WiFi AM5 AMD B850 SATA 6Gb/s Mini ITX Motherboard Number of Memory Slots: 2x288pin (DDR5) Memory Standard: Up to 8200+(OC) Audio Chipset: Realtek ALC1220 Audio Channels: 7.1 Channels Max LAN Speed: 2.5Gbps Maximum Memory Supported: 128GB Channel Supported: Dual Channel CPU Type: Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Manufacturer	ASRock
Model Number	B850I Lightning WiFi
Launch Date	January 2025
CPU Socket	AM5
Chipset Model	Intel B850
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR5
DIMM Slots	2
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2230 - E Key
SATA III Ports	2 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

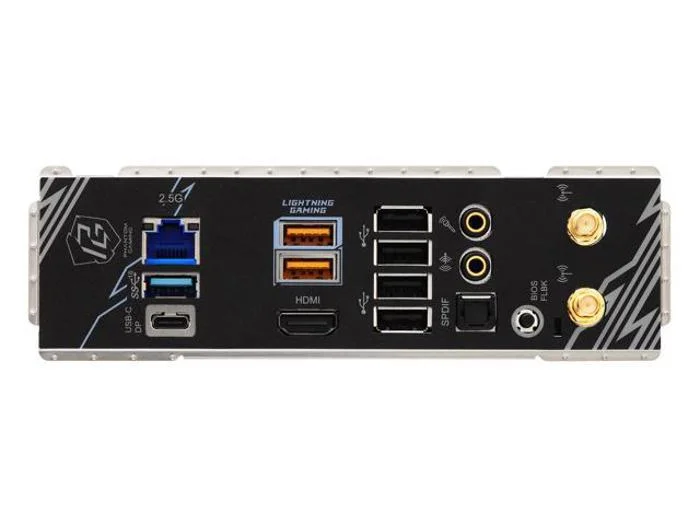

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B850I Lightning WiFi
SKU Code	B850I Lightning WiFi
GTIN / EAN	4711581490130
