ASRock B860M-H2

ASRock B860M-H2 LGA1851 Micro-ATX DDR5 128 GB Motherboard

ASRock Motherboard $119.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1851

ChipsetB860

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

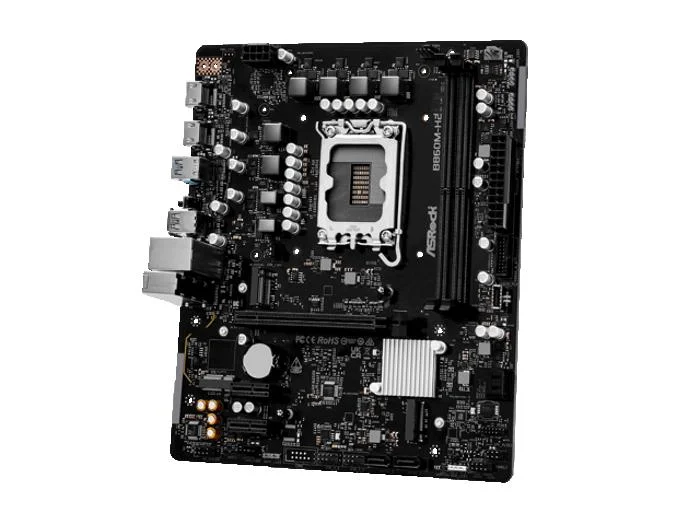

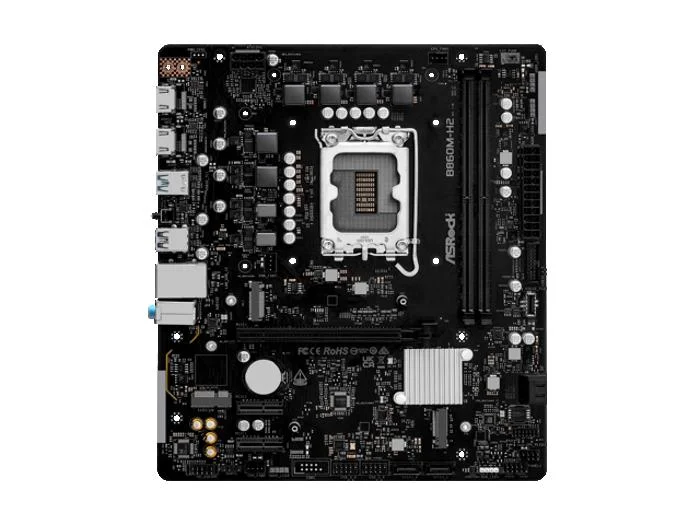

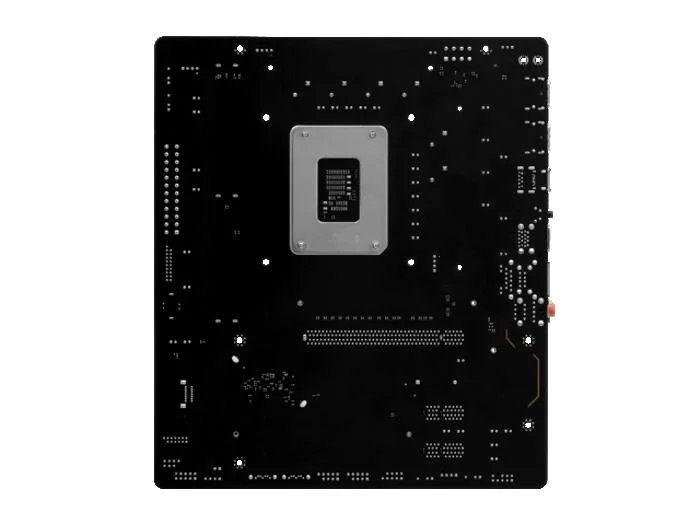

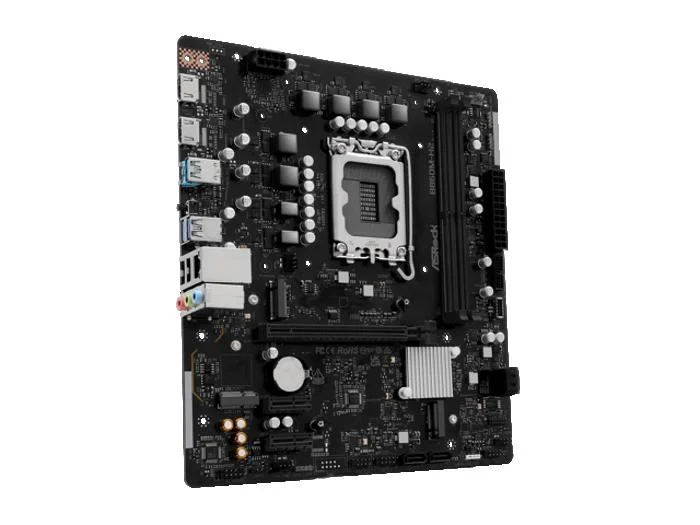

The ASRock B860M-H2 is a Micro-ATX motherboard for LGA1851. It supports DDR5 memory up to 8200 MT/s (OC).

ASRock B860M-H2 LGA 1851 Intel B860 SATA 6Gb/s Intel Core Ultra DDR5 Micro ATX Motherboard Memory Standard: Up to DDR5 8333+(OC) Number of Memory Slots: 2x288pin (DDR5) Audio Chipset: Realtek ALC897 PCI Express 4.0 x16: CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Max LAN Speed: 1Gbps CPU Type: Intel Core Ultra Processors (Series 2) Maximum Memory Supported: 128GB Channel Supported: Dual Channel

Manufacturer	ASRock
Model Number	B860M-H2
Launch Date	January 2025
CPU Socket	LGA1851
Chipset Model	Intel B860
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	2
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-6400 / DDR5-6800 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B860M-H2
SKU Code	B860M-H2
GTIN / EAN	4711581490437
