ASRock H510M-ITX/AC

ASRock H510M-ITX/AC LGA1200 Mini-ITX DDR4 64 GB Motherboard

ASRock Motherboard $94.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetH510

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

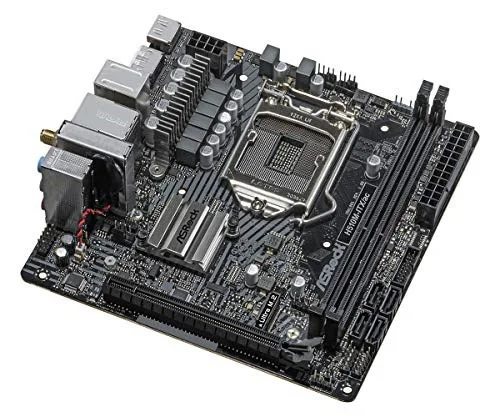

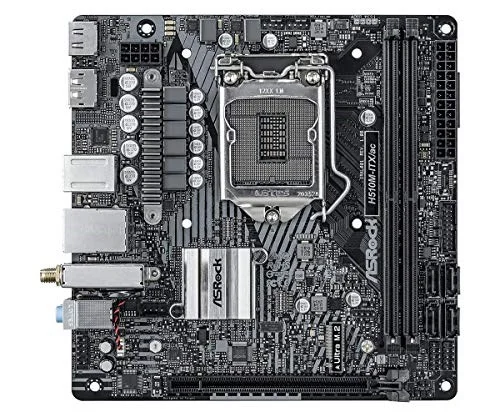

The ASRock H510M-ITX/AC is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 3200 MT/s (OC).

Asrock Ultra M.2 (Pcie Gen3x4 & SATA3)
Asrock Full Spike Protection (For All USB, Audio, LAN Ports)
Supports 10Th Gen Intel Core Processors And 11Th Gen Intel Core Processors (LGA1200)
Supports Intel Turbo Boost Max 3.0 Technology
Dual Channel DDR4 Memory Technology

Manufacturer	ASRock
Model Number	H510M-ITX/AC 90-MXBF30-A0UAYZ
Launch Date	February 2021
CPU Socket	LGA1200
Chipset Model	Intel H510
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	H510M-ITX/AC
SKU Code	H510M-ITX/AC
GTIN / EAN	4710483933929
