ASRock H570 PHANTOM GAMING 4

ASRock H570 PHANTOM GAMING 4 LGA1200 ATX DDR4 128 GB Motherboard

ASRock Motherboard $74.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetH570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

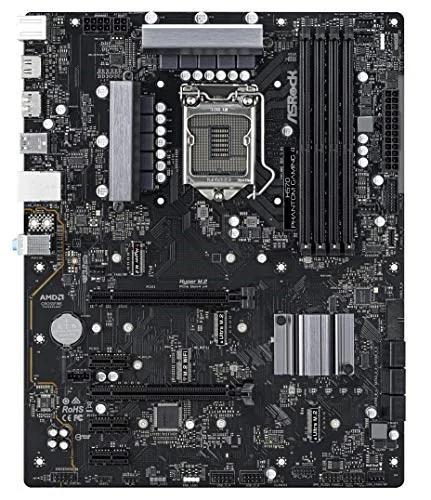

The ASRock H570 PHANTOM GAMING 4 is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).

Manufacturer	ASRock
Model Number	H570 PHANTOM GAMING 4 90-MXBFX0-A0UAYZ
Launch Date	March 2021
CPU Socket	LGA1200
Chipset Model	Intel H570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4666 / DDR4-4800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key (Intel 11th Gen only), 2260 / 2280 - M Key, 2260 / 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	H570 PHANTOM GAMING 4
SKU Code	H570 PHANTOM GAMING 4
GTIN / EAN	4710483934056
