ASRock H670M-ITX/ax

ASRock H670M-ITX/ax LGA1700 Mini-ITX DDR4 128 GB Motherboard

ASRock Motherboard $199.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetH670

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock H670M-ITX/ax is a Mini-ITX motherboard for LGA1700. It supports DDR4 memory up to 4400 MT/s (OC).

ASRock H670M-ITX/AX LGA 1700 Intel H670 SATA 6Gb/s DDR4 Mini ITX Motherboard Memory Standard: DDR4 up to 5000+(OC)* * Supports DDR4 3200 natively. Number of Memory Slots: 2x288pin (DDR4) Audio Chipset: Realtek ALC897 PCI Express 5.0 x16: 1 x PCI Express 5.0 x16* * Supports PCIe riser cards to extend one x16 slot to two x8 slots. * Supports NVMe SSD as boot disks. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps + 10/100/1000Mbps CPU Type: Supports 12th Gen Intel Core Processors Supported CPU Technologies: Turbo Boost Technology 3.0

Manufacturer	ASRock
Model Number	H670M-ITX/ax
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel H670
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-4000 / DDR4-4200 / DDR4-4266 / DDR4-4400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

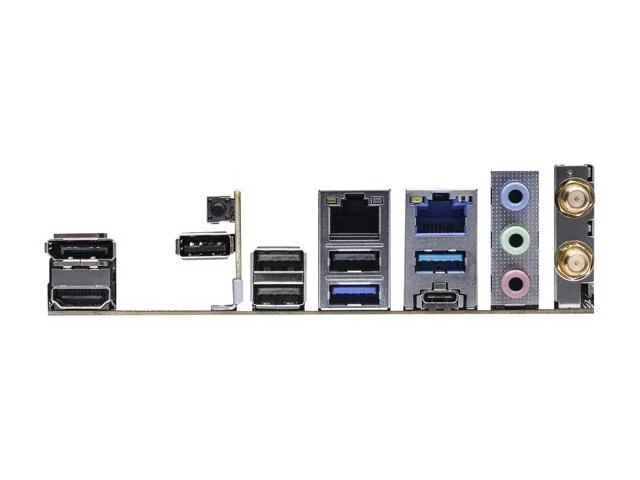

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	H670M-ITX/ax
SKU Code	H670M-ITX/ax
GTIN / EAN	4710483936531
