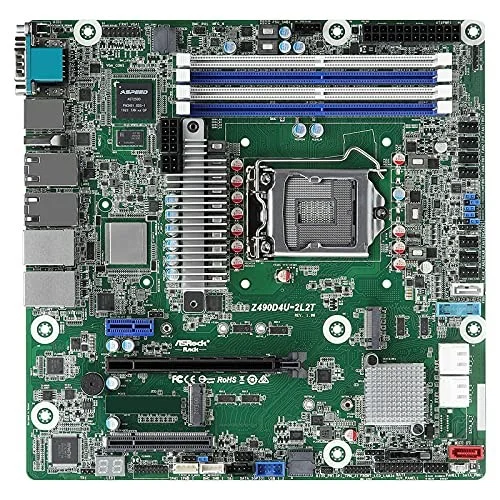

AsRock Rack Z490D4U-2L2T

AsRock Rack Z490D4U-2L2T LGA1200 Micro-ATX DDR4 128 GB Motherboard

ASRock Motherboard $685

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The AsRock Rack Z490D4U-2L2T is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).

mATX 9.6’ x 9.6’ Support Intel 10th Gen. Core i9/i7/i5/i3, Pentium, Celeron Series Processors Support 4 x DDR4 DIMM slots, two channels DDR4 2933*/2666/2400 non-ECC DIMM Support 1 x PCIe 3.0 x16 + 1 x PCIe 3.0 x8 + 1 x PCIe 3.0 x1 + 2 x M.2 Support 6 x SATA3 by Intel Z490 Support 2 x 10G base-T by Intel X710-AT2 + 2 x GLAN by Intel i210 + 1 x Dedicated IPMI

Manufacturer	ASRock
Model Number	Z490D4U-2L2T
Launch Date	July 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2400 / DDR4-2666 / DDR4-2933 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 / 22110 - M Key, 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z490D4U-2L2T
SKU Code	Z490D4U-2L2T
GTIN / EAN	4710483931901
