ASRock WRX80 CREATOR

ASRock WRX80 CREATOR sWRX8 EATX DDR4 2048 GB Motherboard

ASRock Motherboard $1043.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketsWRX8

ChipsetWRX80

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock WRX80 CREATOR is a EATX motherboard for sWRX8. It supports DDR4 memory up to 3200 MT/s (OC).

Supports AMD Ryzen Threadripper PRO 3000WX/5000WX Series Processors

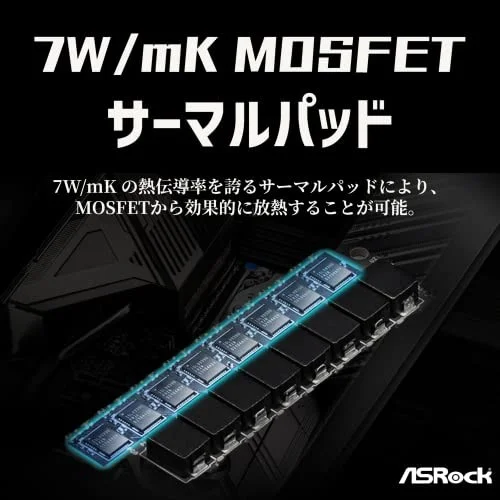

8 Power Phase Design, 105A SPS, Premium Power Choke

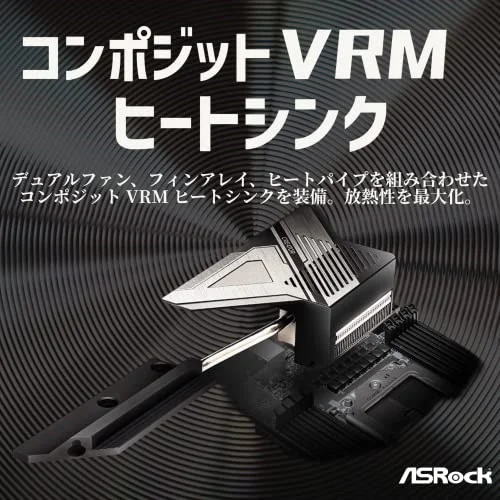

XXL Aluminum Alloy Heatsink & Heatpipe Design
14 Layer Server-Grade Low-Loss PCB
Supports DDR4 4533+(OC)

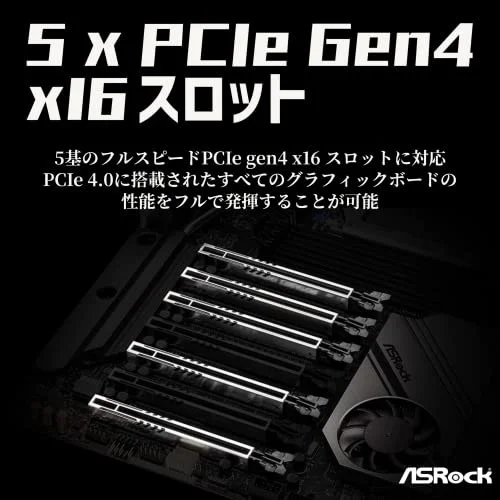

7 PCIe 4.0 x16
AMD 4-Way CrossFireX
8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 U.2 (PCIe Gen3 x4)
2 Thunderbolt 4 Type-C
5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear)
6 USB 3.2 Gen1 (4 Front, 2 Rear)
7.1 CH HD Audio (Realtek ALC4050H+ALC1220), Nahimic Audio
2 Intel X710-AT2 10Gb/s LAN, 1 Dedicated IPMI LAN
Intel 802.11ax (WiFi 6E) + Bluetooth

Manufacturer	ASRock
Model Number	WRX80 CREATOR
Launch Date	N/A
CPU Socket	sWRX8
Chipset Model	WRX80
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	2048 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	7 × PCIe x16
PCIe x16 (Qty)	7
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2260 / 2280 / 22110 - M Key, 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	9 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	WRX80 CREATOR
SKU Code	WRX80 CREATOR
GTIN / EAN	4710483938771
