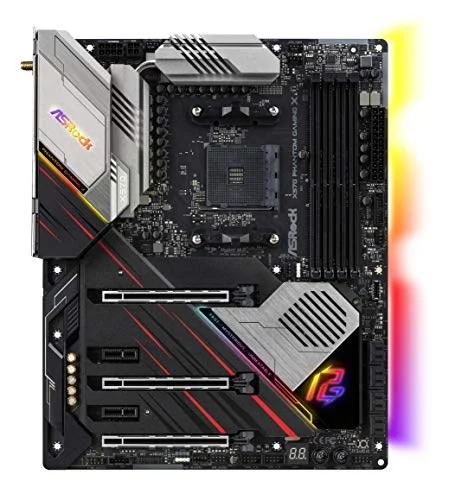

ASRock X570 Phantom Gaming X

ASRock X570 Phantom Gaming X AM4 ATX DDR4 128 GB Motherboard

ASRock Motherboard $333.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock X570 Phantom Gaming X is a ATX motherboard for AM4. It supports DDR4 memory up to 4666 MT/s (OC).

Supports AMD AM4 Socket Ryzen 2000 and 3000 Series processors
Intel Wi-Fi 6 802. 11ax (2. 4Gbps) + BT 5. 0
Phantom Gaming 2. 5 Gigabit LAN, Intel Gigabit LAN
Supports DDR4 4666+ (OC)
3 PCIe 4. 0 x16, 2 PCIe 4. 0 x1
NVIDIA NVLink , Quad SLI , AMD 3-Way CrossFireX
1. 1 CH HD Audio (Realtek ALC1220 Audio Codec)
Supports Creative Sound Blaster Cinema 5
8 SATA3, 2 Hyper M. 2 (PCIe Gen4 x4 & SATA3), 1 Hyper M. 2 (PCIe Gen4 x4)
3 USB 3. 2 Gen2 (Rear Type A+C, Front Type-C), 8 USB 3. 2 Gen1 (2 Front, 6 Rear)

Manufacturer	ASRock
Model Number	X570 Phantom Gaming X
Launch Date	July 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4666 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	X570 Phantom Gaming X
SKU Code	X570 Phantom Gaming X
GTIN / EAN	4717677338850
