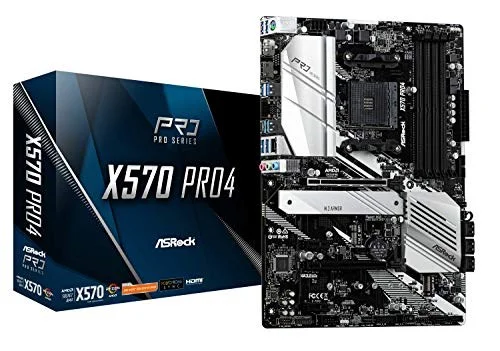

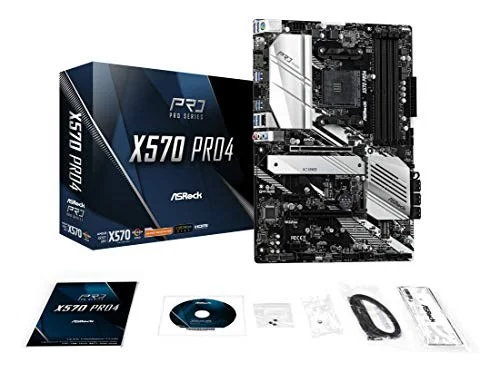

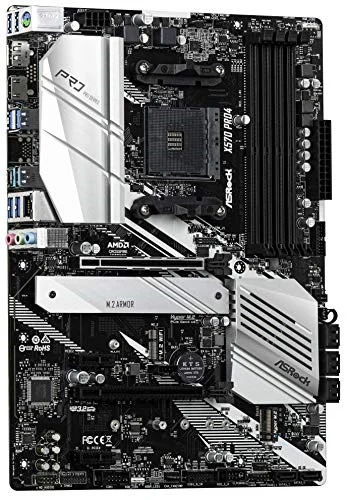

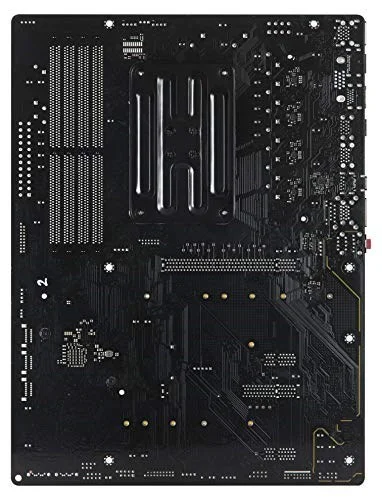

ASRock X570 Pro4

ASRock X570 Pro4 AM4 ATX DDR4 128 GB Motherboard

ASRock Motherboard $129.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock X570 Pro4 is a ATX motherboard for AM4. It supports DDR4 memory up to 4666 MT/s (OC).

Supports AMD AM4 Socket Ryzen. 2000 and 3000 Series processors
10 Power Phase Design; Supports DDR4 4066+ (OC); 2 Pie 4. 0 x16, 2 Pie 4. 0 x1, 1 M. 2(Key E) For WIFI
AMD Quad Crossfire. and Crossfire. Graphics Output Options: HDMI, DisplayPort
1. 1 CH HD Audio (Relate ALC1200 Audio Codec), ELNA Audio Caps
8 SATA3, 1 Hyper M. 2 (Pie Gen4 x4 & SATA3), 1 Hyper M. 2 (Pie Gen4 x4)
2 USB 3. 2 Gen2 (Rear Type A+C), 8 USB 3. 2 Gen1 (2 Front, 6 Rear)
Intel Gigabit LAN, AS Rock Polychrome SYNC

Manufacturer	ASRock
Model Number	X570 Pro4 90-MXBAT0-A0UAYZ
Launch Date	July 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4666 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	X570 Pro4
SKU Code	X570 Pro4
GTIN / EAN	4717677338874
