ASRock X670E Steel Legend

ASRock X670E Steel Legend AM5 ATX DDR5 192 GB Motherboard

ASRock Motherboard $229.95

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetX670E

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock X670E Steel Legend is a ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

ASRock X670E Steel Legend AM5 DDR5 AMD Ryzen 7000 X670E SATA 6Gb/s ATX Motherboard Number of Memory Slots: 4x288pin (DDR5) Memory Standard: DDR5 6600+(OC)* PCI Express 3.0 x16: 1 x PCI Express 3.0 x16* * PCIE3 supports x4 mode. * Supports NVMe SSD as boot disks. * Actual support may vary by CPU. Onboard Video Chipset: Supported only by CPU with integrated graphic Audio Chipset: Realtek ALC1220 PCI Express x1: 1 x PCIe 3.0 x1* * Supports NVMe SSD as boot disks. Audio Channels: 7.1 Channels Max LAN Speed: 10/100/1000/2500Mbps + 10/100/1000Mbps

Manufacturer	ASRock
Model Number	X670E Steel Legend
Launch Date	N/A
CPU Socket	AM5
Chipset Model	Intel X670E
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	5 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 - M Key, 2260 / 2280 - M Key, E-key - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

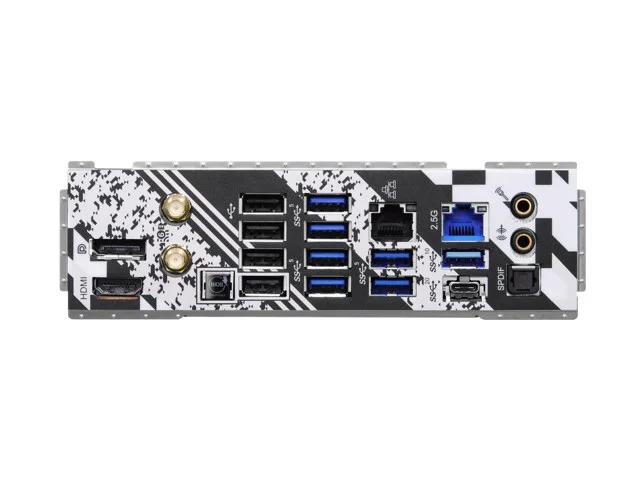

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	X670E Steel Legend
SKU Code	X670E Steel Legend
GTIN / EAN	4710483940323
