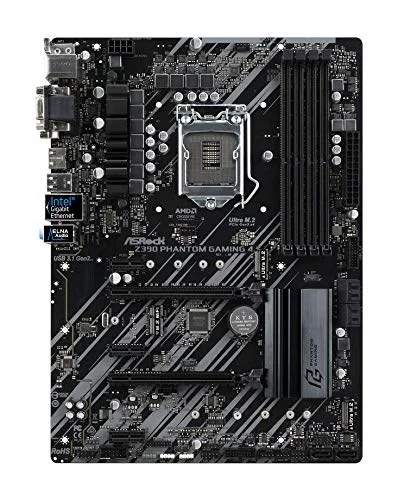

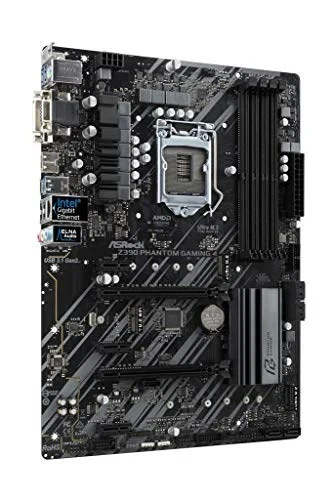

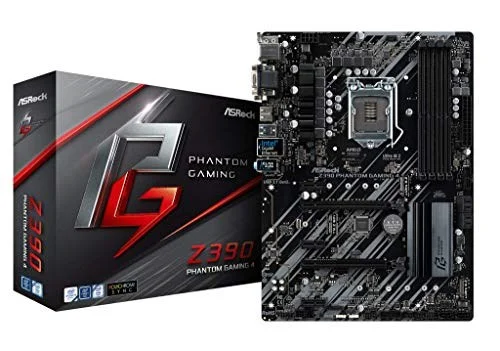

ASRock Z390 PHANTOM GAMING 4

ASRock Z390 PHANTOM GAMING 4 LGA1151 ATX DDR4 64 GB Motherboard

ASRock Motherboard $145.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetZ390

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock Z390 PHANTOM GAMING 4 is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4133 MT/s (OC).

LGA1151 Supports 9th and 8th Generation Intel Core Processors
Chipset: Intel Z390
Memory: 4x DDR4 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
Slots: 2x PCI-Express 3.0 x16 Slots (run single at x16 or dual at x16/x4), 3x PCI-Express 3.0 x1 Slots (Flexible PCIe)
Multi-Graphics: Supports AMD Quad CrossFireX, CrossFireX Technology

Manufacturer	ASRock
Model Number	Z390 PHANTOM GAMING 4
Launch Date	N/A
CPU Socket	LGA1151
Chipset Model	Intel Z390
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z390 PHANTOM GAMING 4
SKU Code	Z390 PHANTOM GAMING 4
GTIN / EAN	4717677336924
