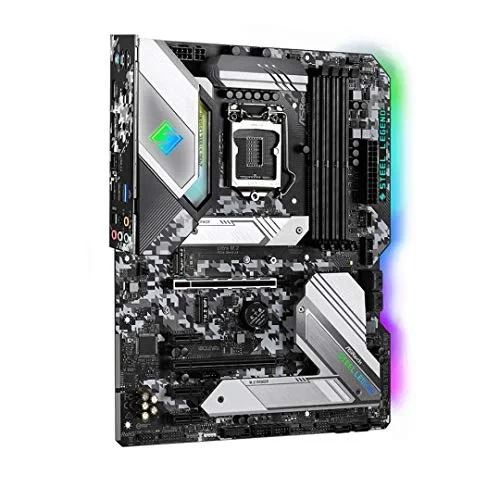

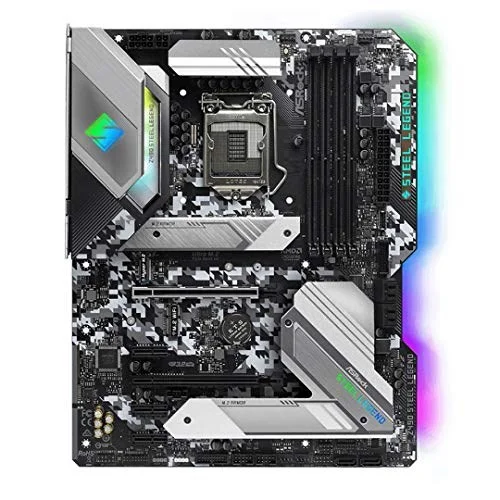

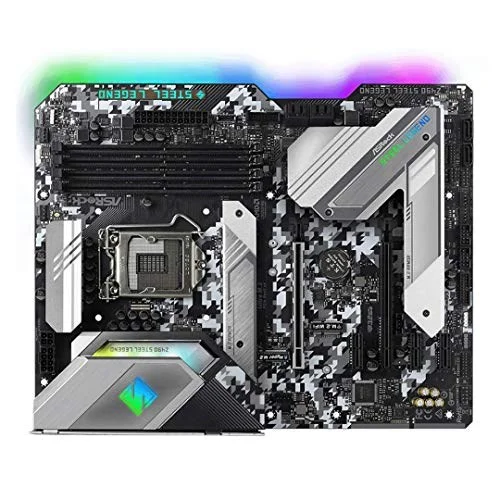

ASRock Z490 Steel Legend

ASRock Z490 Steel Legend LGA1200 ATX DDR4 128 GB Motherboard

ASRock Motherboard $159.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock Z490 Steel Legend is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4266 MT/s (OC).

Manufacturer	ASRock
Model Number	Z490 Steel Legend 90-MXBC10-A0UAYZ
Launch Date	May 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2260 / 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A

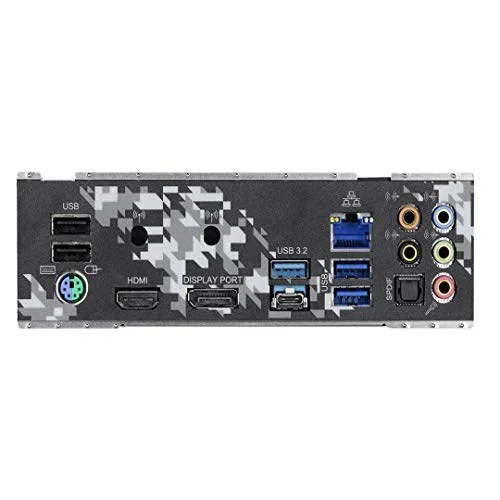

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z490 Steel Legend
SKU Code	Z490 Steel Legend
GTIN / EAN	4710483931024
