ASRock Z590 PHANTOM GAMING-ITX/TB4

ASRock Z590 PHANTOM GAMING-ITX/TB4 LGA1200 Mini-ITX DDR4 64 GB Motherboard

ASRock Motherboard $141.89

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ590

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

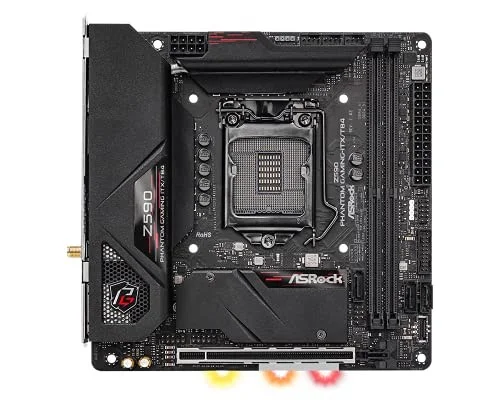

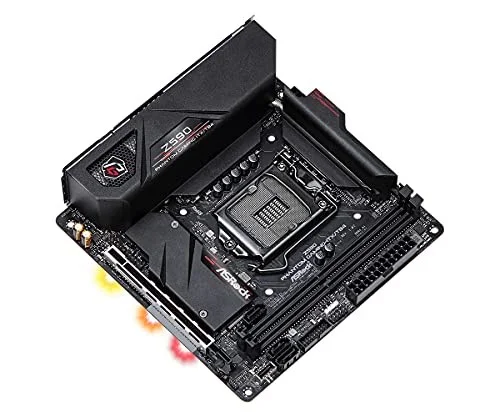

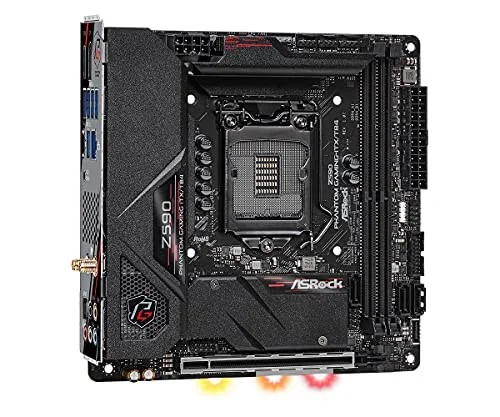

The ASRock Z590 PHANTOM GAMING-ITX/TB4 is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 4266 MT/s (OC).

Intel Z590 Supports 11th Gen Intel Core Processors Supports 10th Gen Intel Core Processors DDR4 4266+(OC) (11th Gen Intel Core Processors)

Manufacturer	ASRock
Model Number	Z590 PHANTOM GAMING-ITX/TB4
Launch Date	May 2021
CPU Socket	LGA1200
Chipset Model	Intel Z590
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-4266 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 - M Key (Intel 11th Gen only), 2280 - M Key, 2230 - E Key
SATA III Ports	3 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

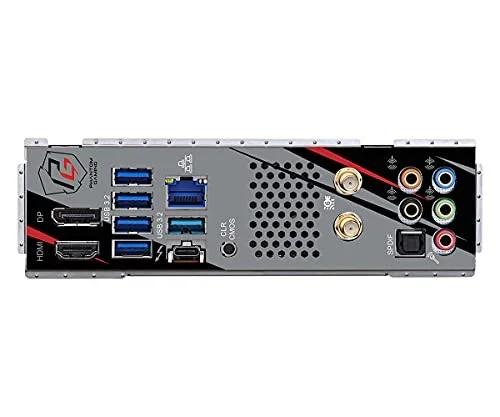

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z590 PHANTOM GAMING-ITX/TB4
SKU Code	Z590 PHANTOM GAMING-ITX/TB4
GTIN / EAN	4710483934520
