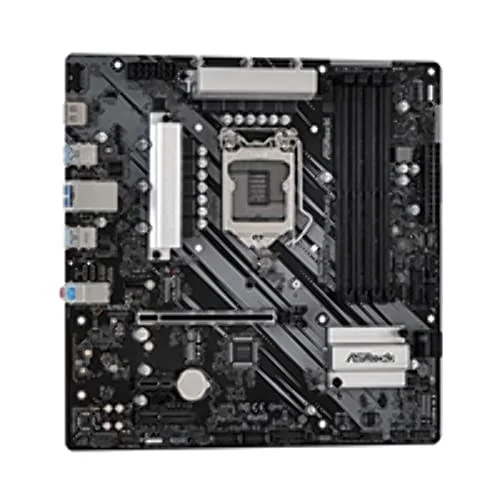

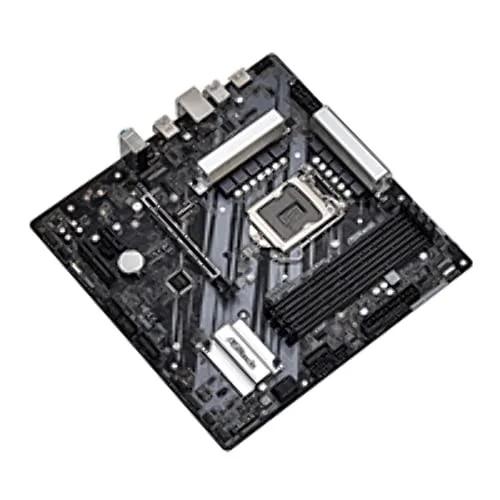

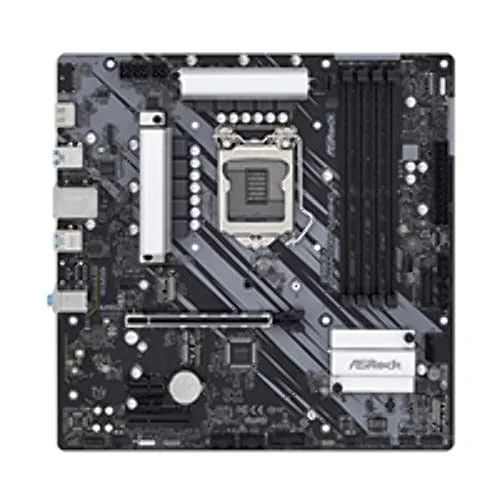

ASROCK Z590M Phantom Gaming 4

ASROCK Z590M Phantom Gaming 4 LGA1200 Micro-ATX DDR4 128 GB Motherboard

ASRock Motherboard $141.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ590

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASROCK Z590M Phantom Gaming 4 is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).

Asrock USB 3.2 Gen2
Asrock Intel 4-Layer Memory POOL (Planes On Outer Layers) Technology
Supports 10Th Gen Intel Core Processors And 11Th Gen Intel Core Processors (LGA1200)
Chipset: Intel Z590
Dual Channel DDR4 Memory Technology

Manufacturer	ASRock
Model Number	Z590M Phantom Gaming 4 90-MXBFB0-A0UAYZ
Launch Date	March 2021
CPU Socket	LGA1200
Chipset Model	Intel Z590
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4600 / DDR4-4800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 1 × PCIe x4, 1 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	1
PCIe x1 (Qty)	1
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 - M Key (Intel 11th Gen only), 2280 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z590M Phantom Gaming 4
SKU Code	Z590M Phantom Gaming 4
GTIN / EAN	4710483933851
