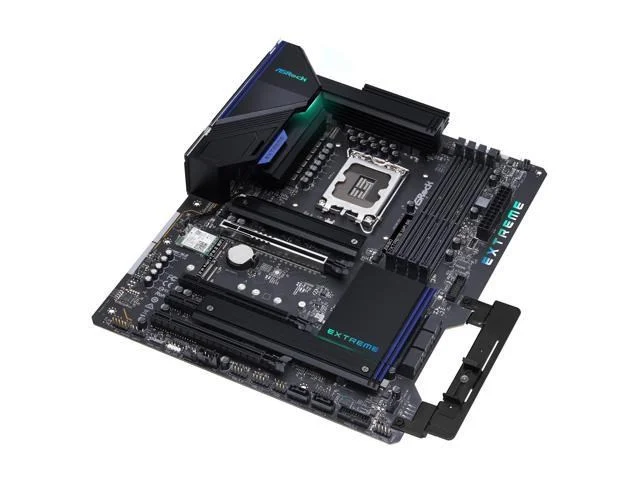

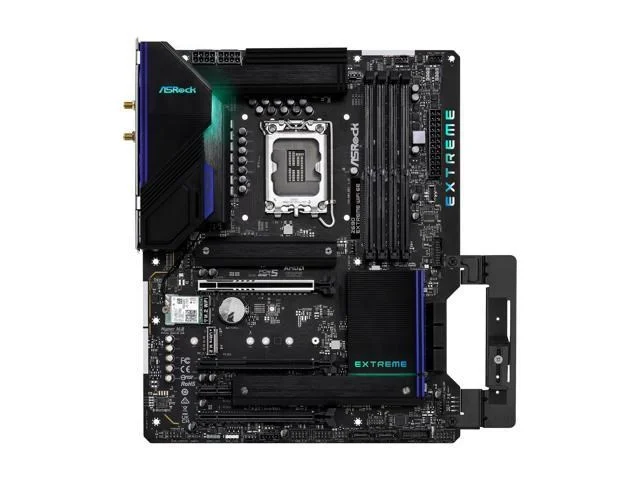

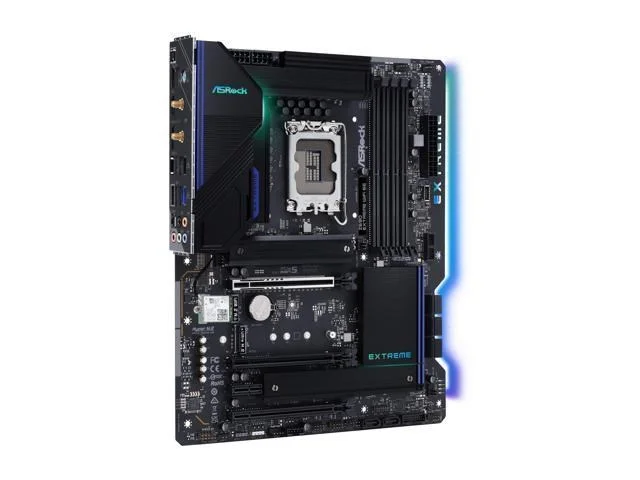

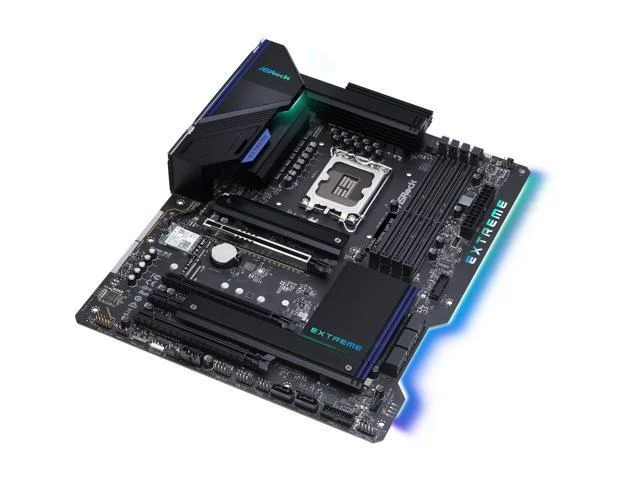

ASRock Z690 EXTREME WiFi 6E

ASRock Z690 EXTREME WiFi 6E LGA1700 ATX DDR4 128 GB Motherboard

ASRock Motherboard $197.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

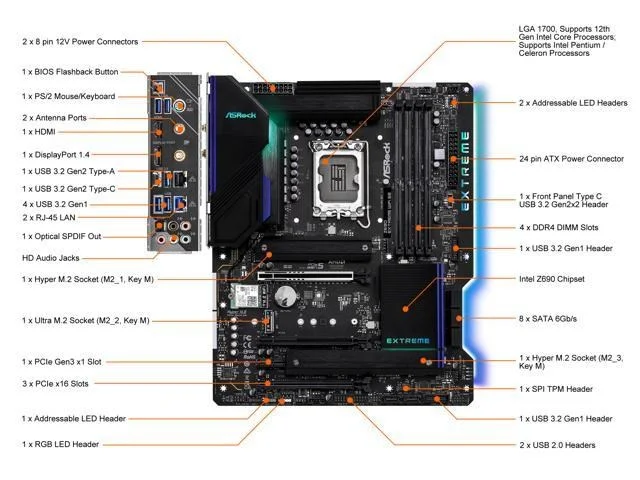

The ASRock Z690 EXTREME WiFi 6E is a ATX motherboard for LGA1700. It supports DDR4 memory up to 5133 MT/s (OC).

ASRock Z690 EXTREME WiFi 6E LGA 1700 Intel Z690 SATA 6Gb/s DDR4 ATX Intel Motherboard Memory Standard: DDR4 5000+(OC)* * Supports DDR4 3200 natively. Number of Memory Slots: 4×288pin Audio Chipset: Realtek ALC1220 PCI Express 5.0 x16: 3 x PCIe x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE2); triple at Gen5x16 (PCIE1) / Gen4x4 (PCIE2) / Gen3x4 (PCIE4))* * Supports NVMe SSD as boot disks. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps + 10/100/1000Mbps CPU Type: Supports 12th Gen Intel Core Processors Supports Intel Pentium / Celeron Processors Supported CPU Technologies: Turbo Boost Technology 3.0

Manufacturer	ASRock
Model Number	Z690 EXTREME WiFi 6E
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5066 / DDR4-5133 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z690 EXTREME WiFi 6E
SKU Code	Z690 EXTREME WiFi 6E
GTIN / EAN	4710483936074
