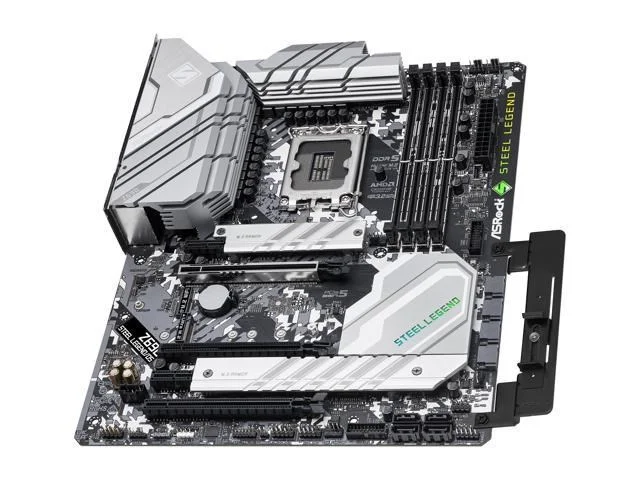

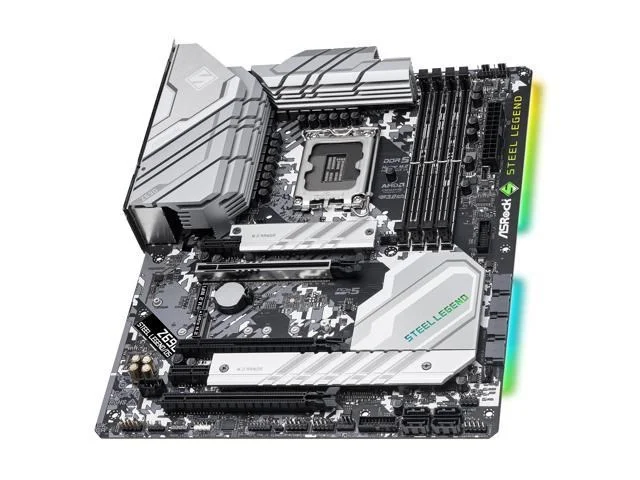

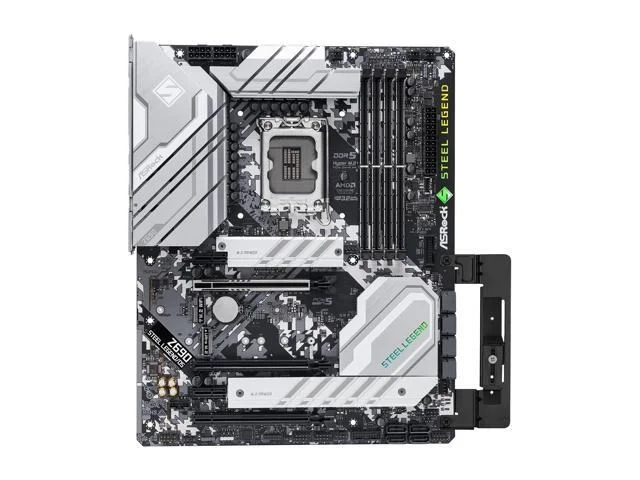

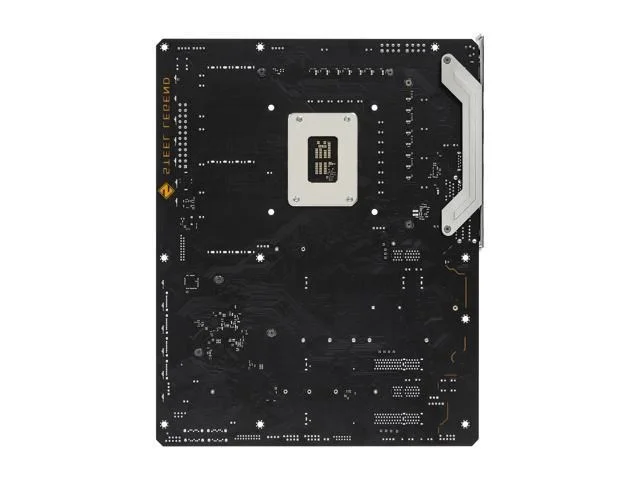

ASRock Z690 STEEL LEGEND/D5

ASRock Z690 STEEL LEGEND/D5 LGA1700 ATX DDR5 192 GB Motherboard

ASRock Motherboard $151.19

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock Z690 STEEL LEGEND/D5 is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).

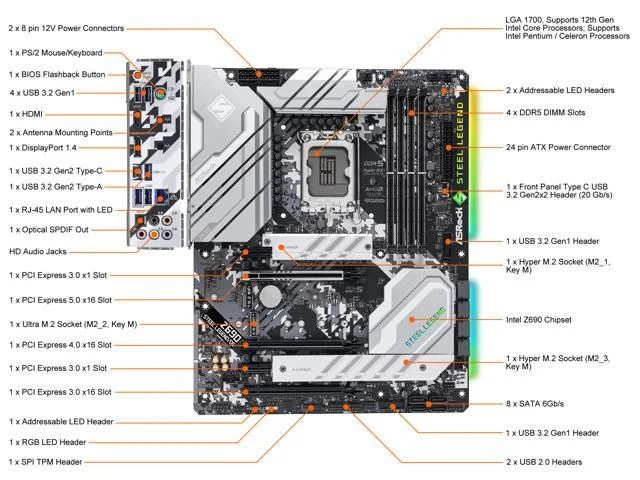

ASRock Z690 STEEL LEGEND/D5 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard Memory Standard: DDR5 6000+(OC)* * 1DPC 1R Up to 6000+ (OC), 4800 Natively. * 1DPC 2R Up to 5600+ (OC), 4400 Natively. * 2DPC 1R Up to 4800+ (OC), 4000 Natively. * 2DPC 2R Up to 4800+ (OC), 3600 Natively. Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC897 PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 * Actual support may vary by CPU. * Supports NVMe SSD as boot disks. PCI Express 4.0 x16: 1 x PCI Express 4.0 x16 * Supports x4 mode. * Supports NVMe SSD as boot disks. PCI Express 3.0 x16: 1 x PCI Express 3.0 x16 * Supports x4 mode. * Supports NVMe SSD as boot disks. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps

Manufacturer	ASRock
Model Number	Z690 STEEL LEGEND/D5 90-MXBIK0-A0UAYZ
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z690 STEEL LEGEND/D5
SKU Code	Z690 STEEL LEGEND/D5
GTIN / EAN	4710483937408
