ASRock Z690M PG RIPTIDE/D5

ASRock Z690M PG RIPTIDE/D5 LGA1700 Micro-ATX DDR5 192 GB Motherboard

ASRock Motherboard $160.79

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

Seller	Shipping	Price
	-	N/A Visit Store
	-	N/A
	-	N/A
	£46.13	N/A Visit Store

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

Overview

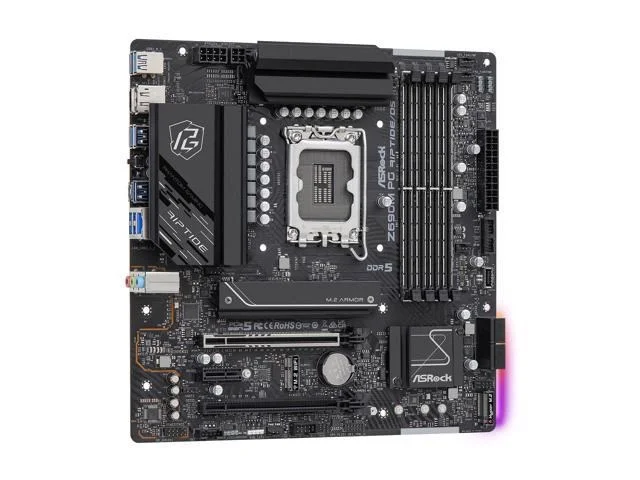

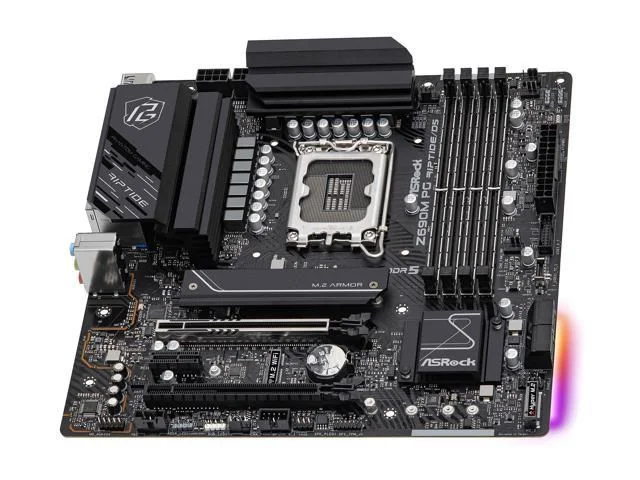

The ASRock Z690M PG RIPTIDE/D5 is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 6000 MT/s (OC).

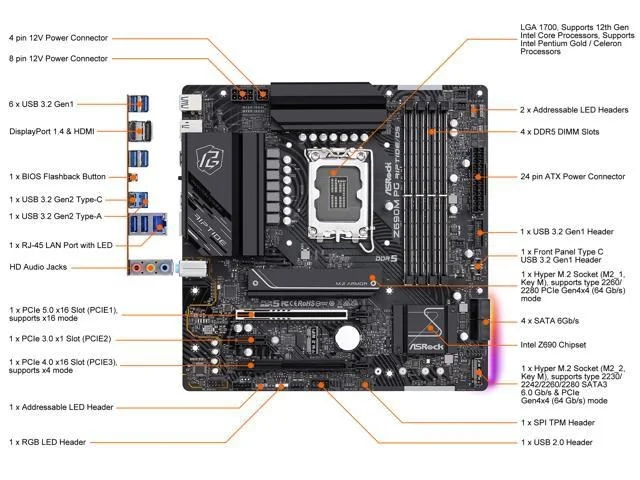

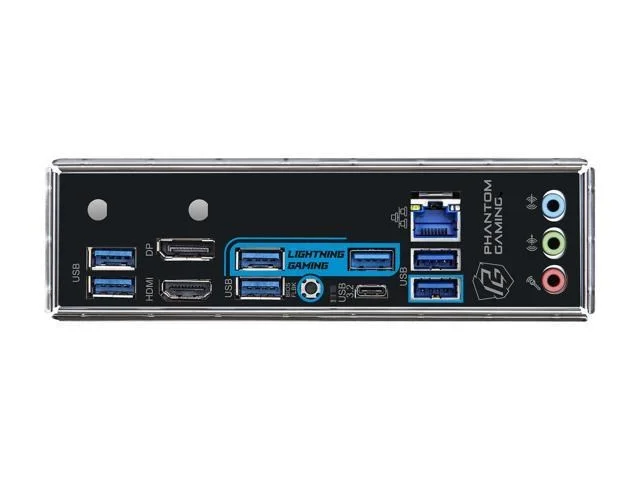

Motherboard Type Desktop Form Factor Micro ATX Socket Intel 1700 Chipset Intel Z690 RAM Technology DDR5 (Dual Channel) RAM Slots 4 x DIMM RAM Speeds Up to 6000+(OC) Maximum Memory 128GB Graphics Integrated Graphics* *Graphics specifications may vary between CPU types Graphics Ports 1 x HDMI 1 x Display Port Multi-GPU Support Supports AMD CrossFire PCI/PCI Express 1 x PCIe 5.0 x16 (x16) 1 x PCIe 4.0 x16 (x4) 1 x PCIe 3.0 x1 Storage 4 x SATA III 1 x M.2 (2260/2280) - PCIe 1 x M.2 (2230/2242/2260/2280) - SATA & PCIe RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices LAN 2.5GB LAN Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) USB Ports Supported 1 x USB 3.2 Gen2 Type-C (at back) 1 x USB 3.2 Gen2 Type-A (at back) 8 x USB 3.2 Gen1 Type-A (6 at back, 2 at mid-board) 2 x USB 2.0 (mid-board) 1 x Front Panel Type-C USB 3.2 Gen1 Header Back Panel I/O Ports 2 x Antenna Mounting Points 1 x HDMI 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 6 x USB 3.2 Gen1 1 x RJ-45 LAN 1 x BIOS Flashback Button HD Audio Jacks Internal I/O Connectors 1 x SPI TPM 1 x Power LED and Speaker 1 x RGB LED 3 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 4 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x 4 pin 12V 1 x Front Audio 1 x Thunderbolt AIC 1 x USB 2.0 1 x USB 3.2 Gen1 1 x Front Panel Type-C USB 3.2 Gen1 Accessories Quick Installation Guide Support CD I/O Shield 2 x SATA Data Cables 3 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket Warranty 3 Year Replacement Warranty Package Type Retail"

Specifications

Manufacturer	ASRock
Model Number	Z690M PG RIPTIDE/D5 90-MXBIL0-A0UAYZ
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4000 / DDR5-4400 / DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	0
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z690M PG RIPTIDE/D5
SKU Code	Z690M PG RIPTIDE/D5
GTIN / EAN	4710483937378
