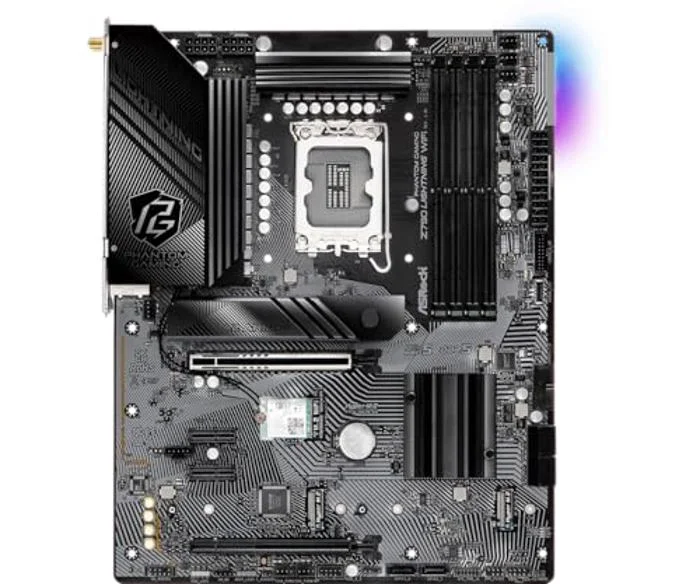

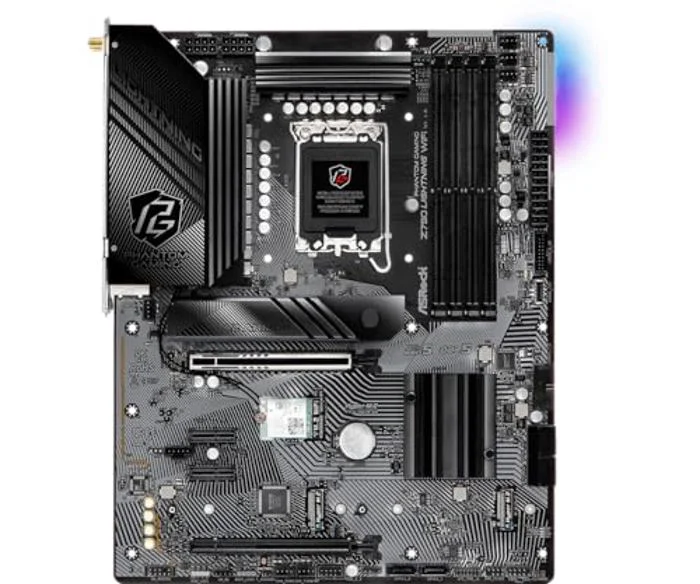

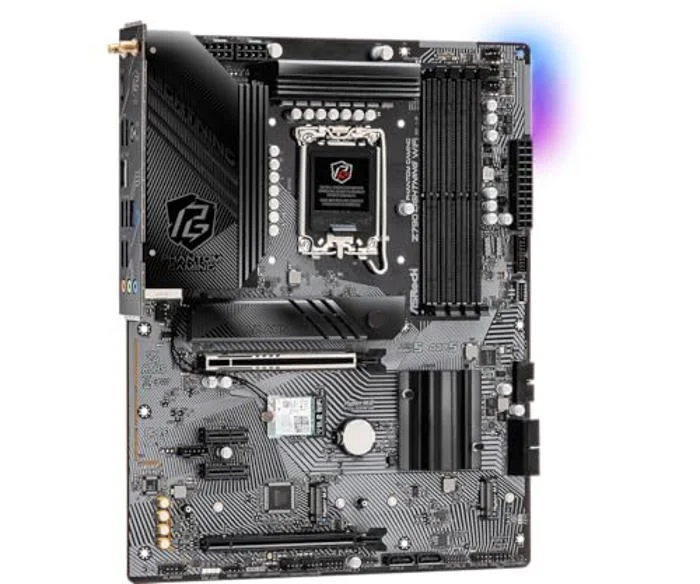

ASRock Z790 Lightning WiFi

ASRock Z790 Lightning WiFi LGA1700 ATX DDR5 192 GB Motherboard

ASRock Motherboard $163.19

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ790

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock Z790 Lightning WiFi is a ATX motherboard for LGA1700. It supports DDR5 memory up to 7600 MT/s (OC).

ASRock Z790 Lightning WiFi LGA 1700(14th,13th,12th Gen) Intel Z790 SATA 6Gb/s ATX DDR5 1 PCIe 5.0 x16 2.5G LAN WiFi 6E + Bluetooth Motherboards - Intel Memory Standard: Supports DDR5 non-ECC, un-buffered memory up to 7600+(OC)* 1DPC 1R Up to 7600+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 5200+ MHz (OC), 3600 MHz Natively. - Max. capacity of system memory: 192GB - Supports Intel Extreme Memory Profile (XMP) 3.0 (http://www.asrock.com/) Number of Memory Slots: 4 x DDR5 DIMM Slots PCI Express x16: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) * Supports NVMe SSD as boot disks - Supports AMD CrossFireTM PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 PCI Express 4.0 x16: 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode

Manufacturer	ASRock
Model Number	Z790 Lightning WiFi
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z790
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

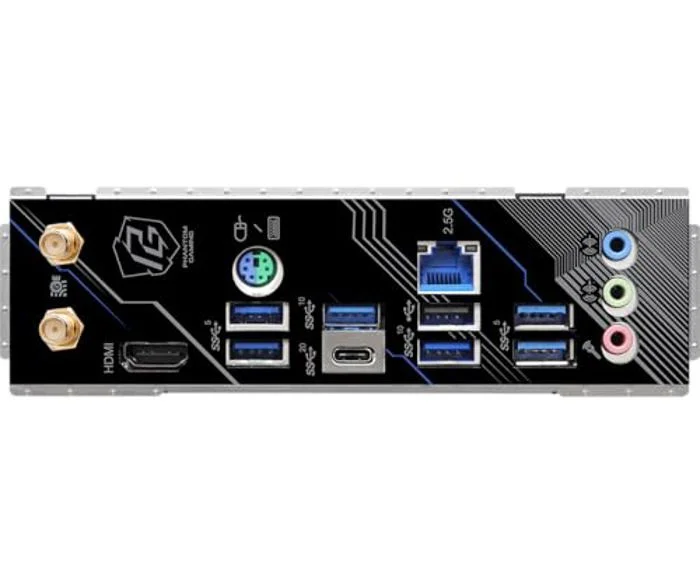

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z790 Lightning WiFi
SKU Code	Z790 Lightning WiFi
GTIN / EAN	4710483944178
