ASRock Z790 PG-ITX/TB4

ASRock Z790 PG-ITX/TB4 LGA1700 Mini-ITX DDR5 64 GB Motherboard

ASRock Motherboard $334.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ790

Form FactorMini-ITX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

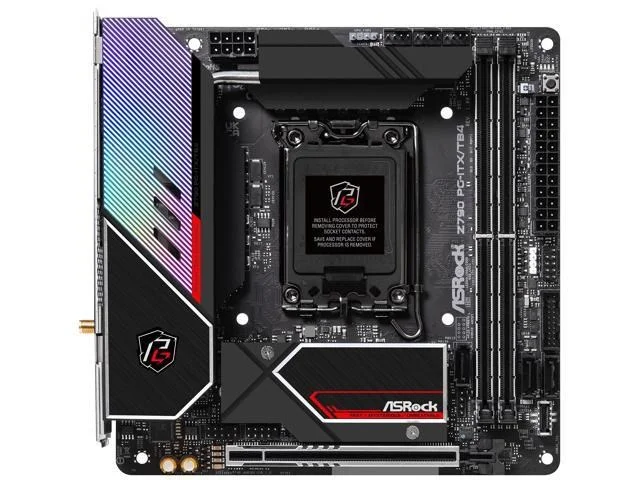

The ASRock Z790 PG-ITX/TB4 is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).

ASRock Z790 PG-ITX/TB4 LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Mini ITX Motherboard Memory Standard: Supports DDR5 non-ECC, un-buffered memory up to 6600+(OC)* 1DPC 1R Up to 6600+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively. Number of Memory Slots: 2x288pin (DDR5) Audio Chipset: Realtek ALC4082 PCI Express 5.0 x16: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* * Supports PCIe riser cards to extend one x16 slot to two x8 slots * Supports NVMe SSD as boot disks Max LAN Speed: 2.5Gbps CPU Type: Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors Maximum Memory Supported: 64GB Channel Supported: Dual Channel

Manufacturer	ASRock
Model Number	Z790 PG-ITX/TB4
Launch Date	October 2022
CPU Socket	LGA1700
Chipset Model	Intel Z790
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR5
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2280 - M Key, 2230 - E Key
SATA III Ports	3 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

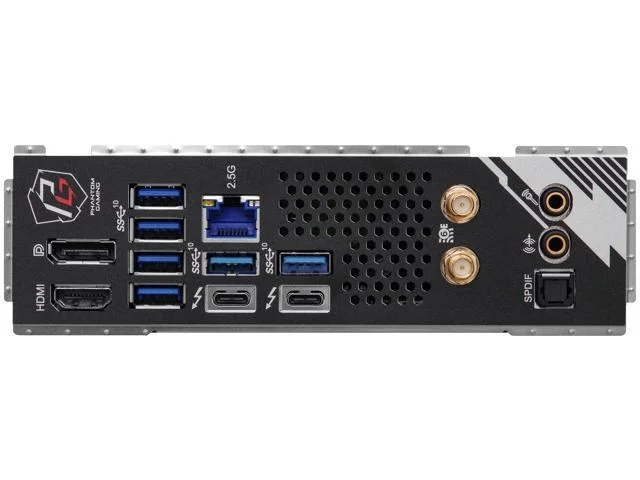

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	0
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z790 PG-ITX/TB4
SKU Code	Z790 PG-ITX/TB4
GTIN / EAN	4710483941108
