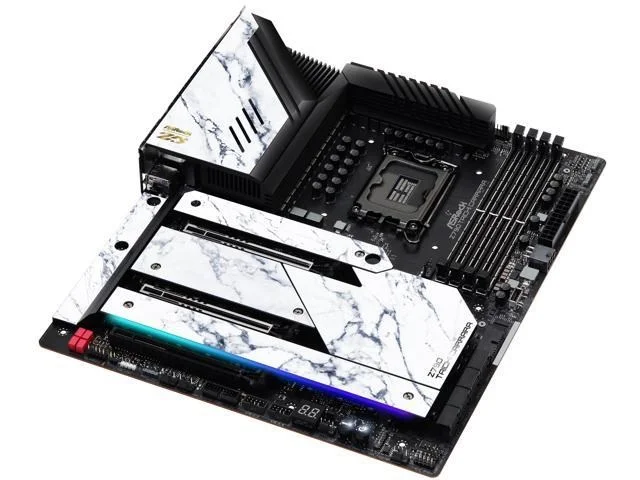

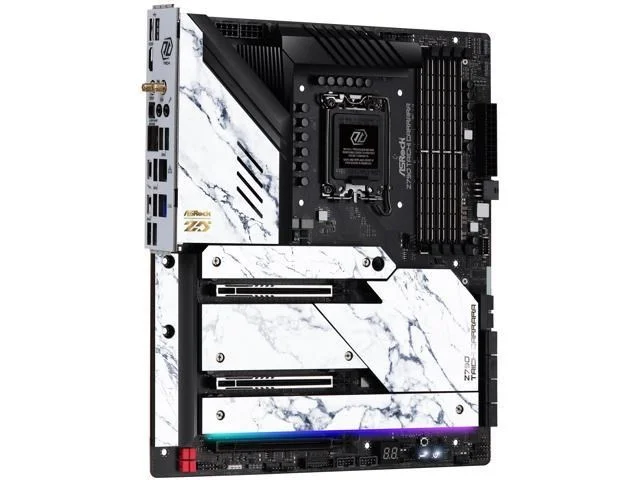

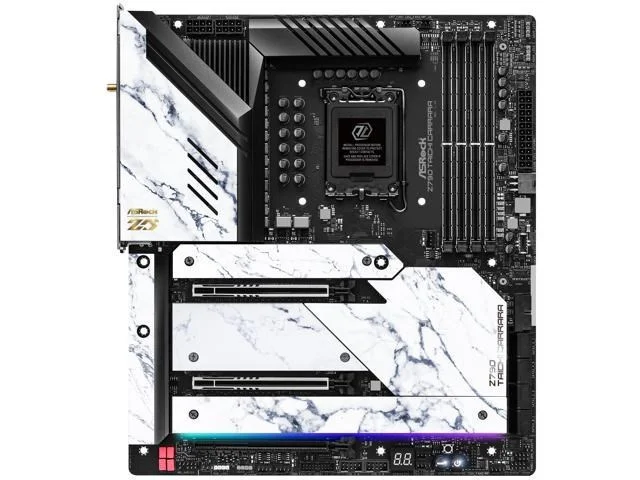

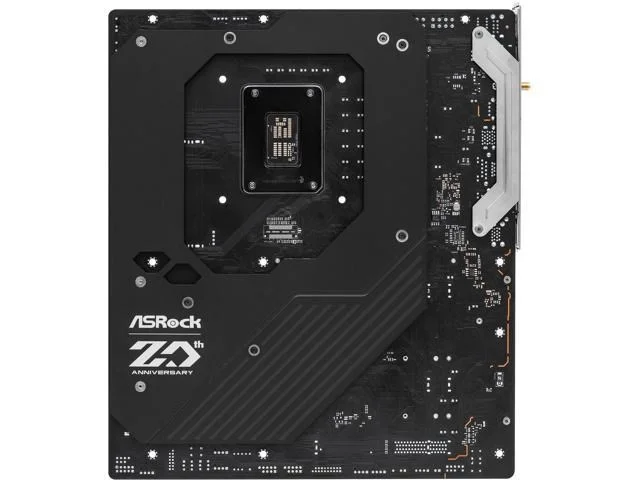

ASRock Z790 TAICHI CARRARA

ASRock Z790 TAICHI CARRARA LGA1700 EATX DDR5 192 GB Motherboard

ASRock Motherboard $299.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ790

Form FactorEATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASRock Z790 TAICHI CARRARA is a EATX motherboard for LGA1700. It supports DDR5 memory up to 6600 MT/s (OC).

ASRock Z790 TAICHI CARRARA LGA 1700 Intel Z790 SATA 6Gb/s DDR5 EATX Intel Motherboard Memory Standard: DDR5 4800 Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC4082 PCI Express 5.0 x16: 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* PCI Express 4.0 x16: 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* * If PCIE2 is occupied, M2_1 will be disabled. * If PCIE3 is occupied, SATA3_0~4 will be disabled. * Supports NVMe SSD as boot disks Max LAN Speed: 2.5Gbps CPU Type: Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors Maximum Memory Supported: 128GB

Manufacturer	ASRock
Model Number	Z790 TAICHI CARRARA
Launch Date	October 2022
CPU Socket	LGA1700
Chipset Model	Intel Z790
Board Size / Form Factor	EATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	5 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

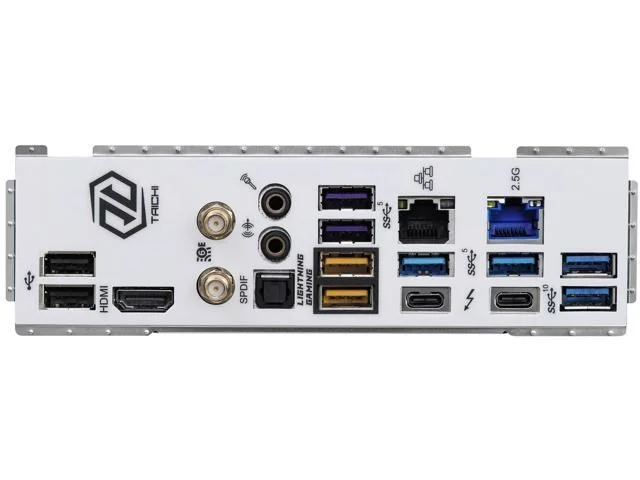

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Z790 TAICHI CARRARA
SKU Code	Z790 TAICHI CARRARA
GTIN / EAN	4710483941092
