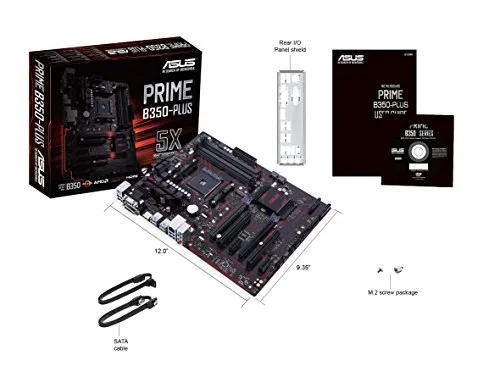

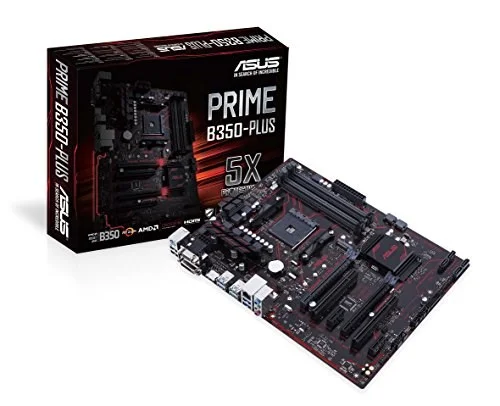

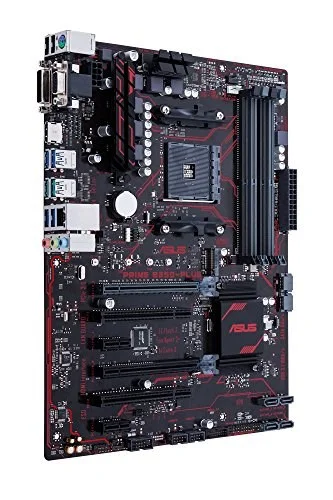

ASUS Prime B350-Plus

ASUS Prime B350-Plus AM4 ATX DDR4 64 GB Motherboard

Asus Motherboard $129

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB350

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS Prime B350-Plus is a ATX motherboard for AM4. It supports DDR4 memory up to 2666 MT/s (OC).

Powered by AMD Ryzen AM4, 7th generation Athlon and HD 2000 series processors to maximize connectivity and speed with NVMe M.2, USB 3.1, DDR4 and Gigabit LAN
5X Protection III Hardware-level safeguards provide component longevity and reliability
Specially designed fan RGB header to support multi-color CPU fan LED strips
Patent-pending SafeSlot Core fortified PCIe slot prevents damage caused by heavyweight GPUs
FanXpert 2+ delivers advanced fan controls for optimized cooling. Supports CPU up to 8 cores

Manufacturer	Asus
Model Number	PRIME B350-PLUS 90MB0TG0-M0EAY0
Launch Date	March 2017
CPU Socket	AMD Socket AM4
Chipset Model	Intel B350
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME B350-PLUS
SKU Code	PRIME B350-PLUS
GTIN / EAN	889349657270
