Asus PRIME B450-PLUS

Asus PRIME B450-PLUS AM4 ATX DDR4 64 GB Motherboard

Asus Motherboard $78.9

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

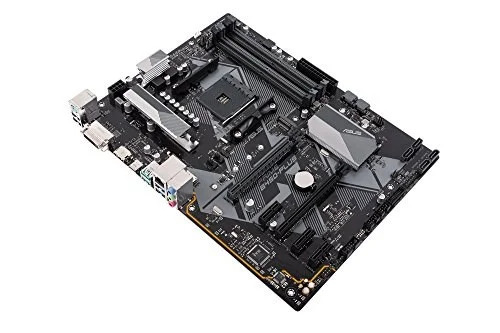

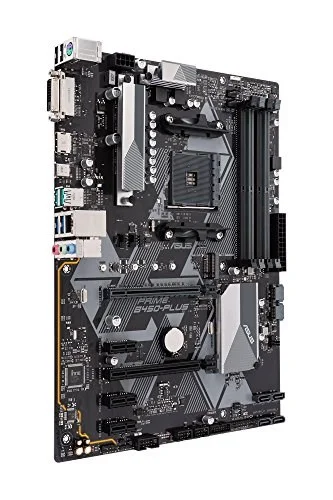

The Asus PRIME B450-PLUS is a ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).

Powered by 2nd generation AMD Ryzen AM4 to maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2, DDR4 (3200 MHz) and Gigabit LAN
5X Protection III hardware-level safeguards provide component longevity and reliability
Aura Sync RGB header provides a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of enabled products
Patent-pending Safe Slot Core fortified Pie slot prevents damage caused by heavyweight GPUs
FanXpert 4 Core delivers comprehensive controls for fans and AIO pump, plus GPU-temperature sensing for cooler and optimized gaming

Manufacturer	Asus
Model Number	PRIME B450-PLUS 90MB0YN0-M0EAY0
Launch Date	September 2018
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME B450-PLUS
SKU Code	PRIME B450-PLUS
GTIN / EAN	192876075678
