Asus PRIME B450M-A/CSM

Asus PRIME B450M-A/CSM AM4 Micro-ATX DDR4 128 GB Motherboard

Asus Motherboard $77.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

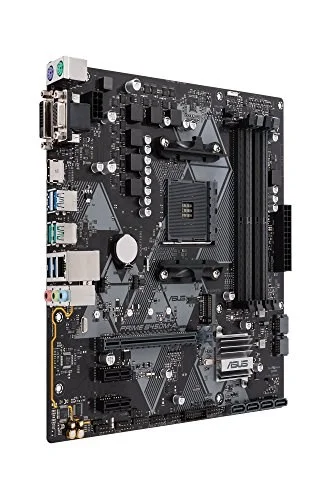

The Asus PRIME B450M-A/CSM is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).

Powered by 2nd generation AMD Ryzen AM4 processors to maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2, DDR4 and Gigabit LAN
ASUS Corporate Stable Model complimentary Advance Replacement and long lifecycle with a COM header and PS2 ports for legacy needs
5X Protection III hardware-level safeguards provide component longevity and reliability
Aura Sync RGB header provides a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of enabled products
Patent-pending Safe Slot Core fortified Pie slot prevents damage caused by heavyweight GPUs

Manufacturer	Asus
Model Number	PRIME B450M-A/CSM 90MB0YR0-M0AAYC
Launch Date	July 2018
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME B450M-A/CSM
SKU Code	PRIME B450M-A/CSM
GTIN / EAN	192876078808
