ASUS PRIME B460M-A

ASUS PRIME B460M-A LGA1200 Micro-ATX DDR4 128 GB Motherboard

Asus Motherboard $103.33

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetB460

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

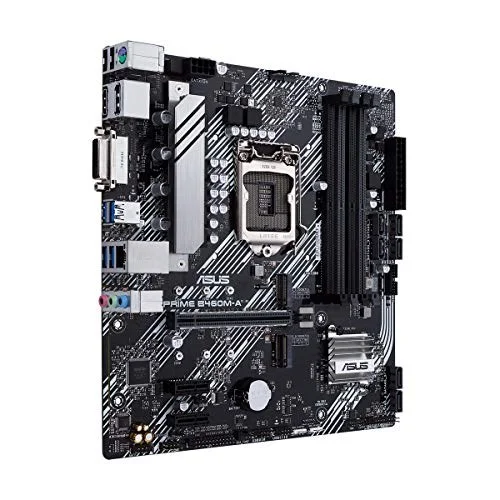

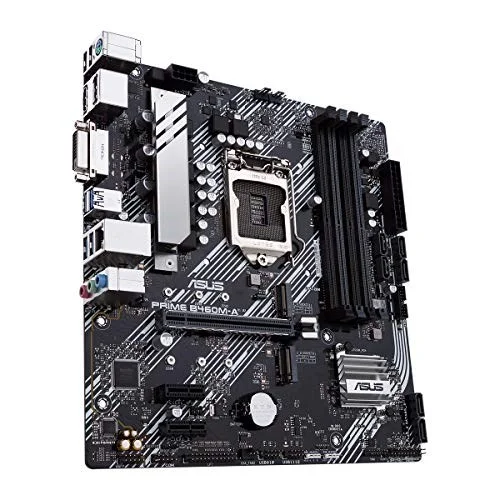

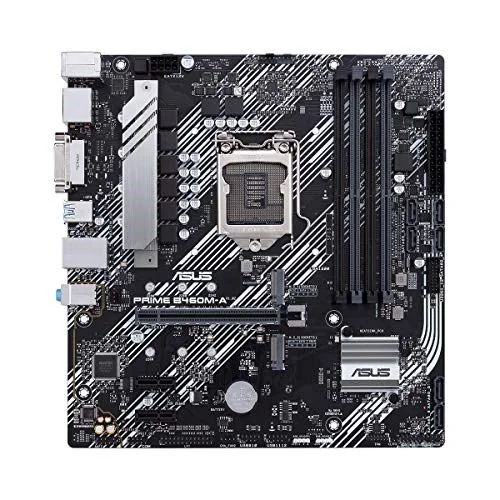

The ASUS PRIME B460M-A is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).

Intel Socket LGA1200 For 10Th Gen Intel Core, Pentium Gold And Celeron Processors*
ASUS Optimem
2 X DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 Mhz Non-ECC, Un-Buffered Memory*

Manufacturer	ASUS
Model Number	PRIME B460M-A 90MB13E0-M0EAY0 90MB13E0-M0AAY0
Launch Date	May 2020
CPU Socket	LGA1200
Chipset Model	Intel B460
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME B460M-A
SKU Code	PRIME B460M-A
GTIN / EAN	192876716106
