ASUS Prime B550M-K

ASUS Prime B550M-K AM4 Micro-ATX DDR4 128 GB Motherboard

Asus Motherboard $109.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB550

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS Prime B550M-K is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4600 MT/s (OC).

AM4 Socket: Ready For 3Rd Gen AMD Ryzen Processors

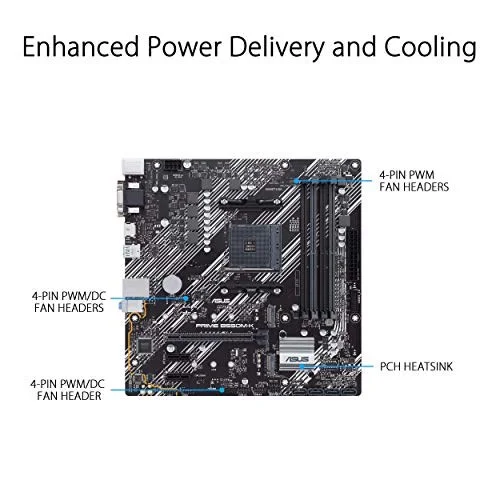

Comprehensive Cooling: VRM Heatsink, PCH Fanless Heatsink, M.2 Heatsink, Hybrid Fan Headers And Fan Xpert 2+ Utility

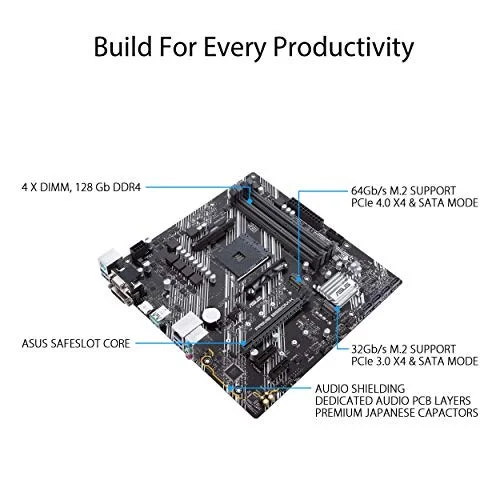

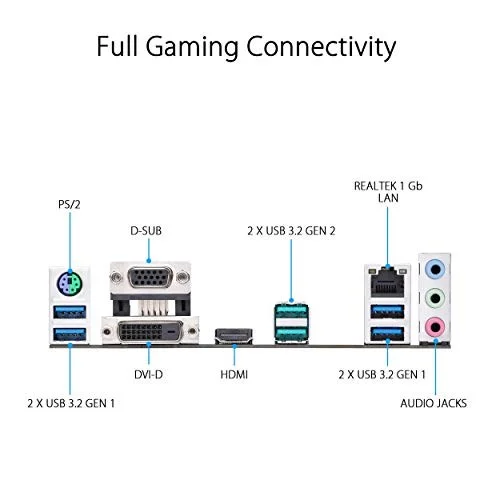

Ultrafast Connectivity: Dual M.2, Pcie 4.0, Intel Wifi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
5X Protection III: Multiple Hardware Safeguards For All-Around System Protection

Manufacturer	ASUS
Model Number	PRIME B550M-K 90MB14V0-M0EAY0 90MB14V0-M0AAY0
Launch Date	June 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel B550
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME B550M-K
SKU Code	PRIME B550M-K
GTIN / EAN	192876758281
