ASUS PRIME B760M-A

ASUS PRIME B760M-A LGA1700 Micro-ATX DDR5 128 GB Motherboard

Asus Motherboard $124.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB760

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

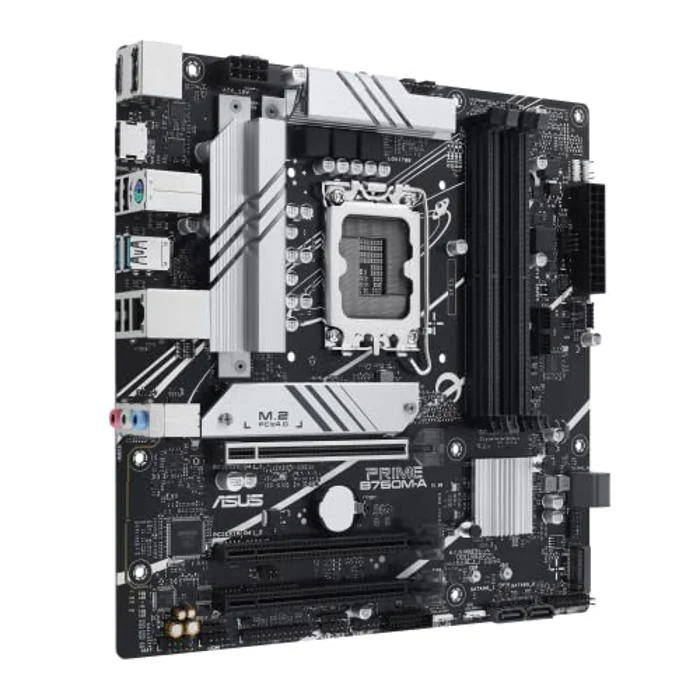

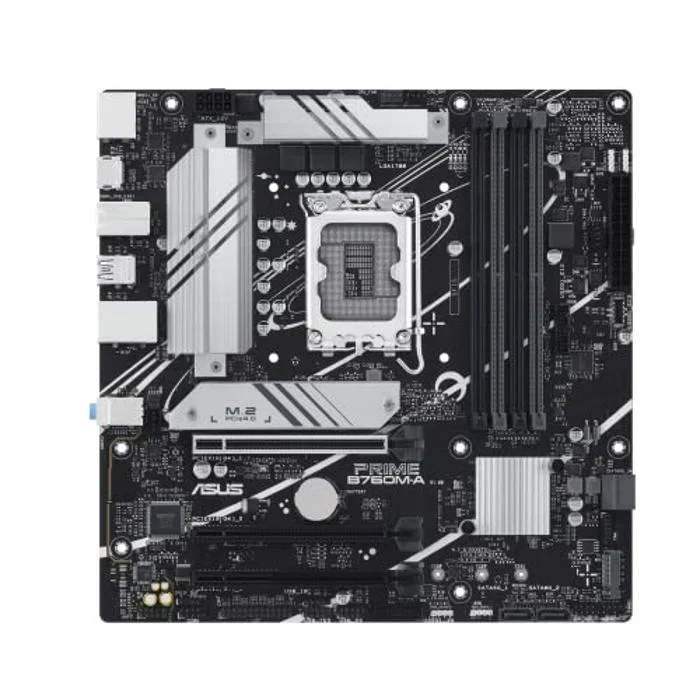

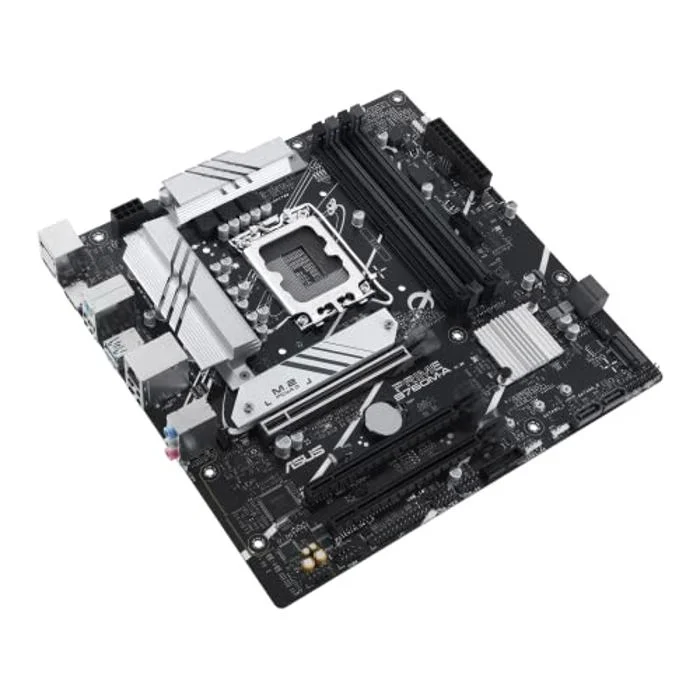

The ASUS PRIME B760M-A is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 7200 MT/s (OC).

Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Manufacturer	ASUS
Model Number	PRIME B760M-A 90MB1EK0-M0AAY0 90MB1EK0-M1AAY0
Launch Date	May 2023
CPU Socket	LGA1700
Chipset Model	Intel B760
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME B760M-A
SKU Code	PRIME B760M-A
GTIN / EAN	197105140684
