ASUS Prime B840-PLUS WiFi

ASUS Prime B840-PLUS WiFi AM5 ATX DDR5 192 GB Motherboard

Asus Motherboard $149.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB840

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS Prime B840-PLUS WiFi is a ATX motherboard for AM5. It supports DDR5 memory up to 7600 MT/s (OC).

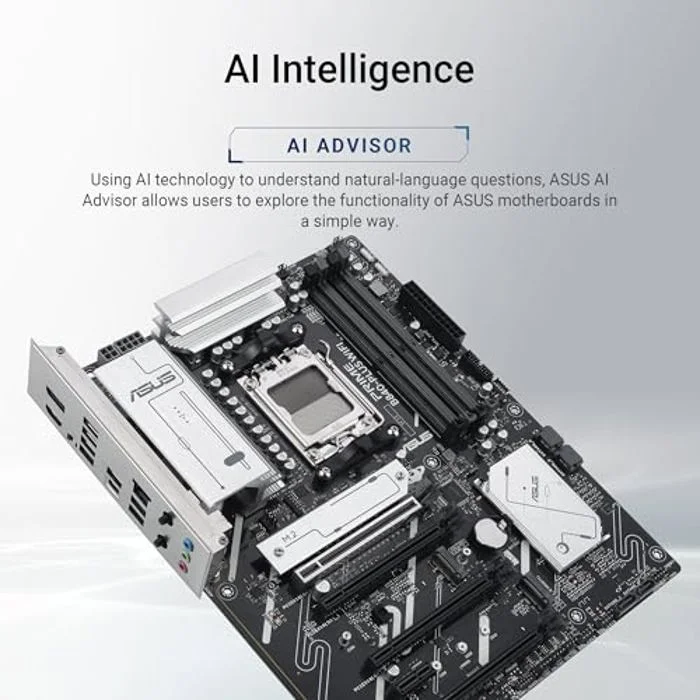

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

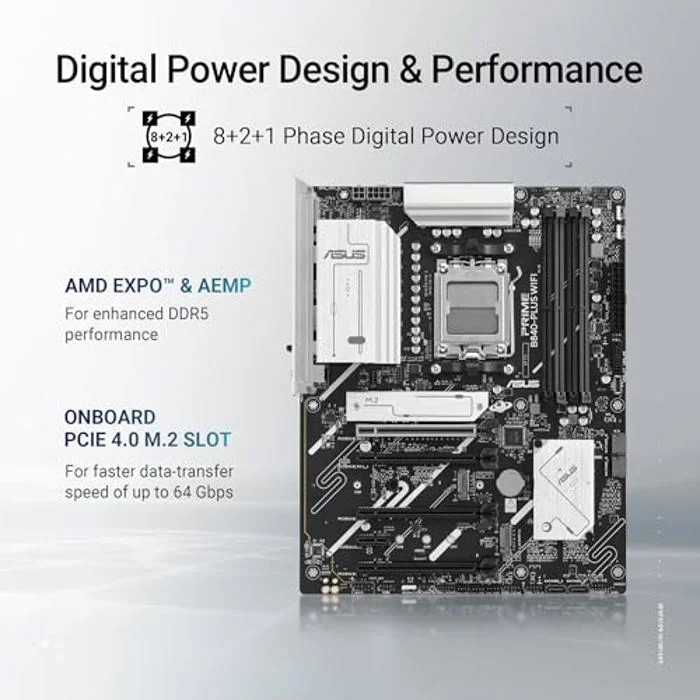

Enhanced Power Solution: 6-layer PCB, alloy chokes and durable capacitors for stable power delivery
Ultrafast Connectivity: Wi-Fi 6E, PCIe 4.0 x16 slot, PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A & Type-C ports, and front USB 5Gbps Type-C support
Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+

Manufacturer	ASUS
Model Number	PRIME B840-PLUS WIFI 90MB1IZ0-M0AAY0
Launch Date	January 2025
CPU Socket	AM5
Chipset Model	Intel B840
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-7600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	4 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2280 - M Key, 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME B840-PLUS WIFI
SKU Code	PRIME B840-PLUS WIFI
GTIN / EAN	197105797277
