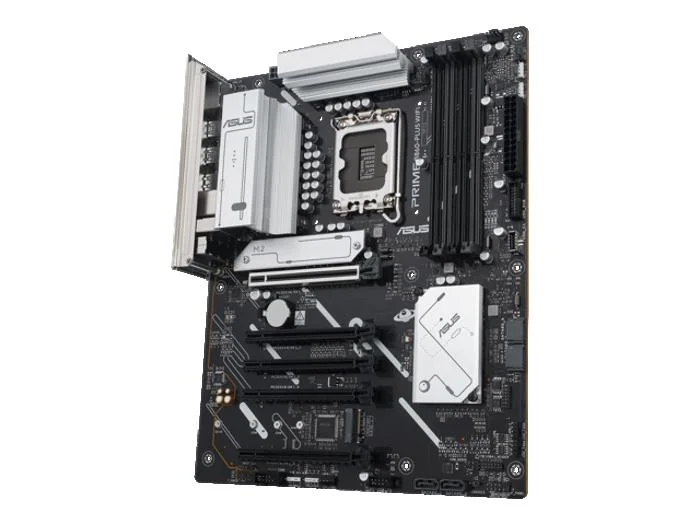

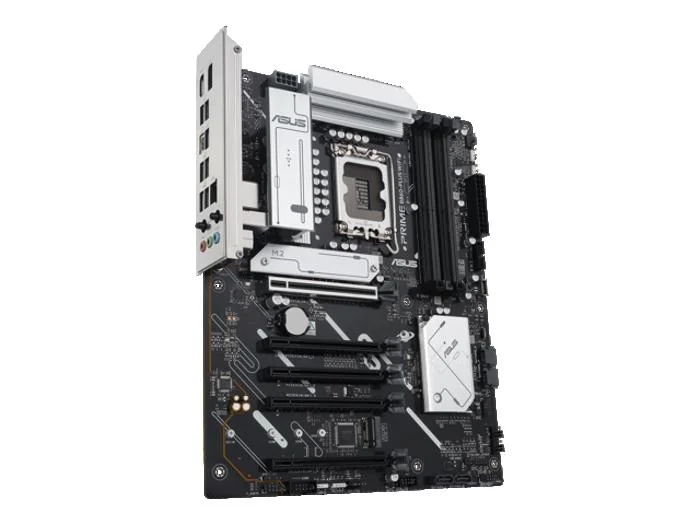

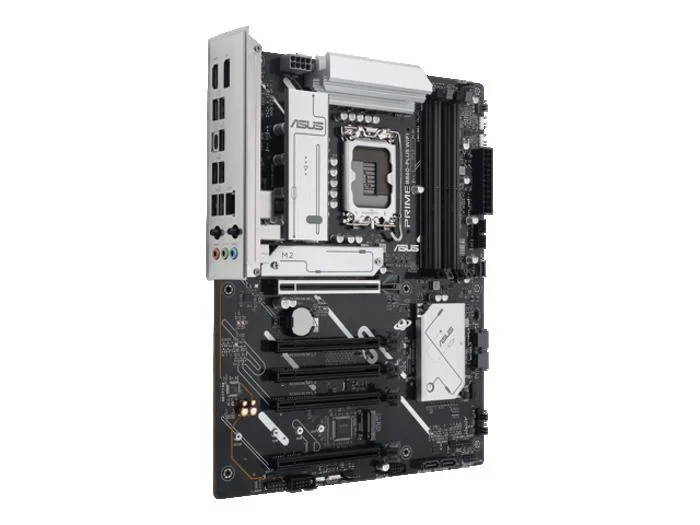

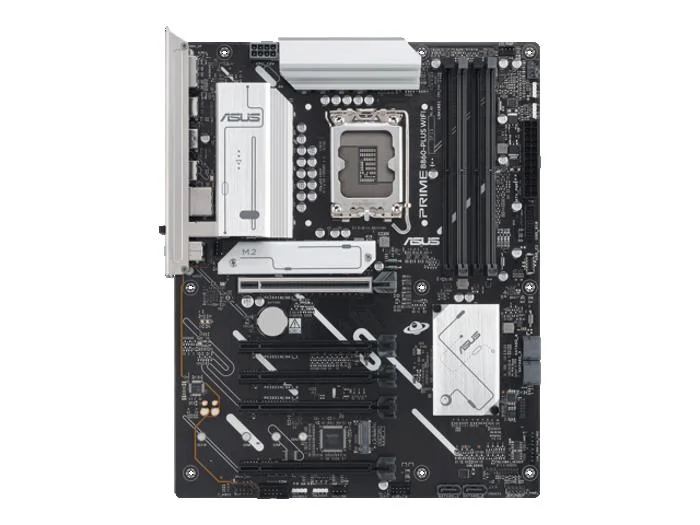

Asus PRIME B860-PLUS WIFI

Asus PRIME B860-PLUS WIFI LGA1851 ATX DDR5 256 GB Motherboard

Asus Motherboard $179.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1851

ChipsetB860

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus PRIME B860-PLUS WIFI is a ATX motherboard for LGA1851. It supports DDR5 memory up to 8400 MT/s (OC).

ASUS PRIME B860-PLUS WIFI B860 LGA 1851 ATX motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 8+1+1+1 stages, DDR5, PCIe 5.0, HDMI, USB 20Gbps Type-C, 2 x M.2, WiFi 6E, 2.5Gb LAN Memory Standard: Up to 8200+ MT/s (OC) Number of Memory Slots: 4x288pin (DDR5) PCI Express 5.0 x16: Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot PCI Express 4.0 x16: Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 3 x PCIe 4.0 x16 slots (support x1 mode) Max LAN Speed: 2.5Gbps CPU Type: Intel Core Ultra Processors (Series 2) Maximum Memory Supported: 192GB Channel Supported: Dual Channel

Manufacturer	Asus
Model Number	PRIME B860-PLUS WIFI 90MB1K50-M0AAY0
Launch Date	January 2025
CPU Socket	LGA1851
Chipset Model	Intel B860
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	5 × PCIe x16
PCIe x16 (Qty)	5
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME B860-PLUS WIFI
SKU Code	PRIME B860-PLUS WIFI
GTIN / EAN	197105814691
