ASUS Prime H310M-E

ASUS Prime H310M-E LGA1151 Micro-ATX DDR4 32 GB Motherboard

Asus Motherboard $135.9

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetH310

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

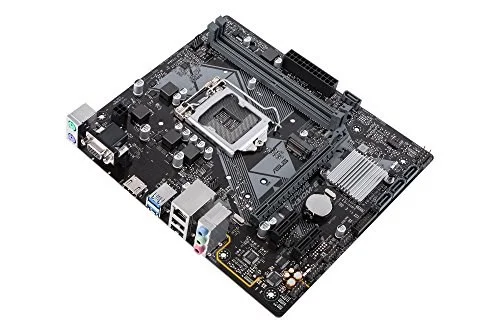

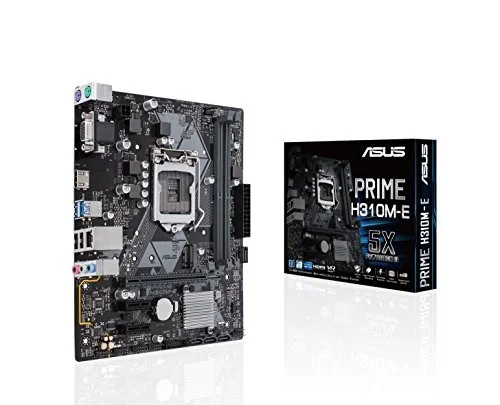

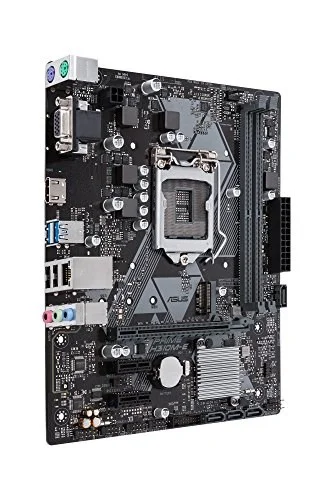

The ASUS Prime H310M-E is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).

Designed exclusively for 8th generation Intel CoreTM processors to maximize connectivity and speed with Dual M.2, Gigabit LAN and on-board WiFi, USB 3.1 Gen2, and Intel OptaneTM Memory compatibility
Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize system durability
Fan Xpert 4 Core provides advanced fan and liquid cooling controls for dynamic system cooling and management
Aura Sync RGB lighting with additional 4-pin RGB header features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
3-Year Warranty for guaranteed reliability built on military-grade engineering

Manufacturer	Asus
Model Number	PRIME H310M-E
Launch Date	April 2018
CPU Socket	LGA1151
Chipset Model	Intel H310
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	32 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME H310M-E
SKU Code	PRIME H310M-E
GTIN / EAN	889349906545
