ASUS PRIME H610I-PLUS D4-CSM

ASUS PRIME H610I-PLUS D4-CSM LGA1700 Mini-ITX DDR4 64 GB Motherboard

Asus Motherboard $112.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetH610

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

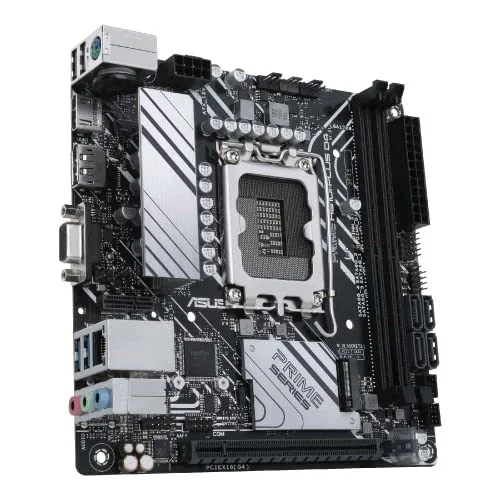

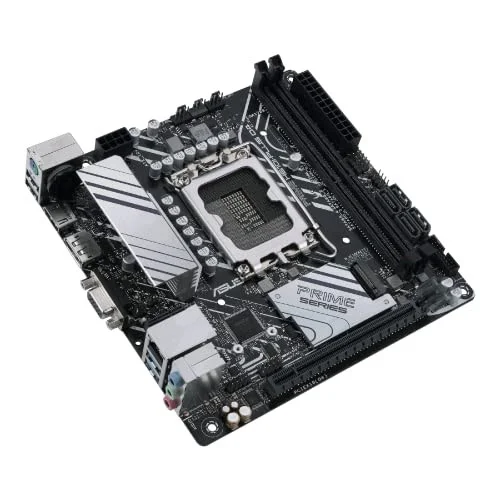

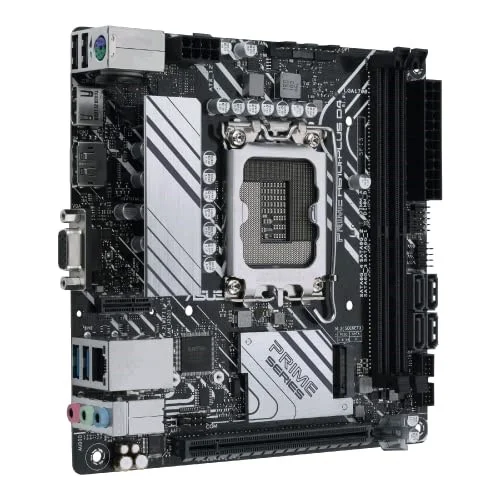

The ASUS PRIME H610I-PLUS D4-CSM is a Mini-ITX motherboard for LGA1700. It supports DDR4 memory up to 3200 MT/s (OC).

Intel LGA 1700 socket: Ready for 12th Gen Intel processors
Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert
Ultrafast connectivity: PCIe 4.0, DDR4, 32Gbps M.2 slot, Realtek 1 Gb Ethernet, USB 3.2 Gen 1 and V-M.2 Key E slot for Wi-Fi

Manufacturer	ASUS
Model Number	PRIME H610I-PLUS D4-CSM 90MB1B20-M2AAYC
Launch Date	April 2022
CPU Socket	LGA1700
Chipset Model	Intel H610
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, E-key - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	0
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME H610I-PLUS D4-CSM
SKU Code	PRIME H610I-PLUS D4-CSM
GTIN / EAN	195553755757
