ASUS PRIME TRX40-PRO

ASUS PRIME TRX40-PRO sTRX4 ATX DDR4 256 GB Motherboard

Asus Motherboard $397.64

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketsTRX4

ChipsetTRX40

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS PRIME TRX40-PRO is a ATX motherboard for sTRX4. It supports DDR4 memory up to 4666 MT/s (OC).

Amd Socket Strx4: Ready For The Latest 3Rd Gen AMD Ryzen Threadripper Series Processors

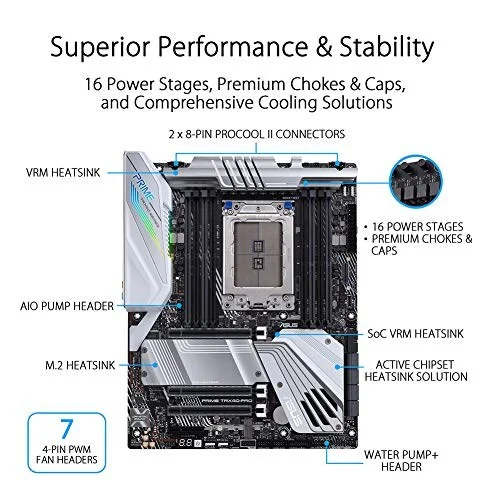

Robust Power Design: 16 Infineon Tda21462 Power Stages, Procool II Connectors With Solid Pins, And Premium Chokes And Capacitors For Stable Power Delivery
Comprehensive Thermal Solutions: VRM Heatsink, M.2 Heatsink, Soc VRM Heatsink, Active Chipset Heatsink Solution, And An Array Of Hybrid Fan Headers

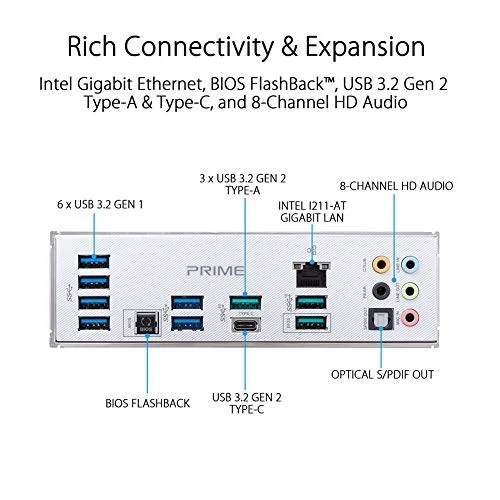

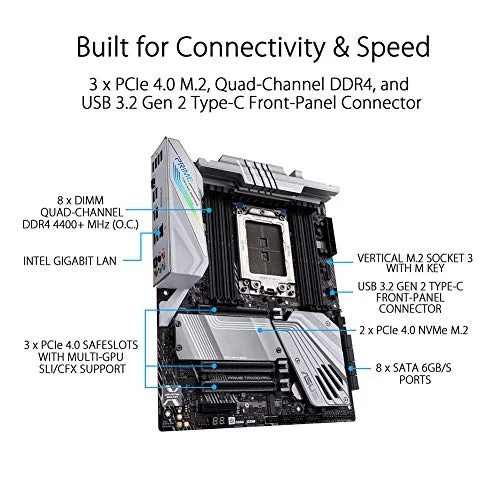

Next-Gen Connectivity: Three Pcie 4.0 Nvme M.2 Slots, USB 3.2 Gen 2 Type-C Front-Panel Connector, And Intel Gigabit Ethernet

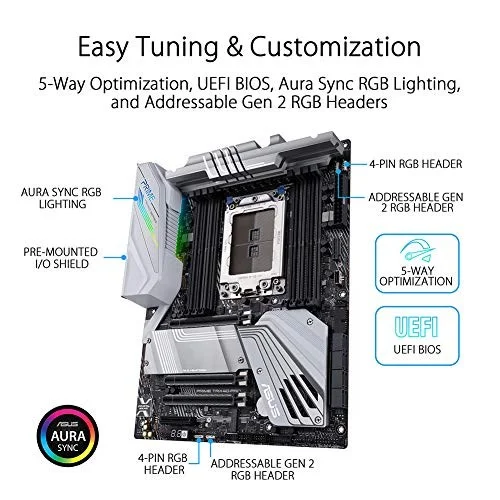

Intelligent Tuning: Asus 5-Way Optimization Software And Renowned UEFI BIOS Offer Easy Configuration Options For All Experience Levels

Manufacturer	ASUS
Model Number	PRIME TRX40-PRO
Launch Date	November 2019
CPU Socket	sTRX4
Chipset Model	TRX40
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-4133 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4600 / DDR4-4666 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	3
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME TRX40-PRO
SKU Code	PRIME TRX40-PRO
GTIN / EAN	192876535127
