ASUS PRIME X299-DELUXE II LGA2066 ATX DDR4 128 GB Motherboard

Asus Motherboard $494.7

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA2066

ChipsetX299

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS PRIME X299-DELUXE II is a ATX motherboard for LGA2066. It supports DDR4 memory up to 4266 MT/s (OC).

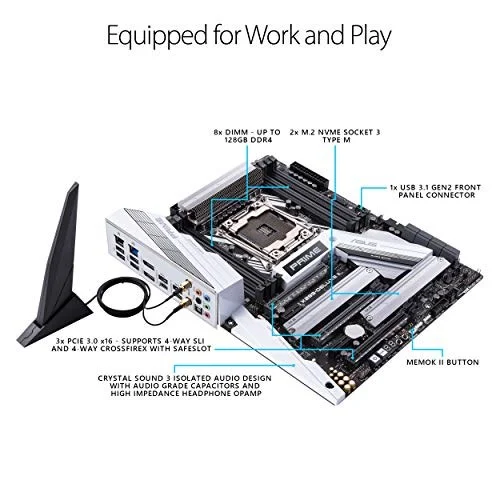

LGA2066 Socket Intel Core X-Series Processors Triple M.2, Front Panel USB 3.1 Gen2, Onboard 802.11AC Wi-Fi And 5G LAN, Intel VROC And Intel Optane Memory Compatibility
5-Way Optimization With Auto-Tuning And Fanxpert4 Automatically Tailors Overclocking Profiles To Your Unique Build For Maximum OC Performance And Dynamic System Cooling
Patent-Pending Safe Slot Features An Injection Molding Process That Integrates Metal Framing For A Stronger, Firmly Anchored Pcie Slot Built For Heavyweight GPU

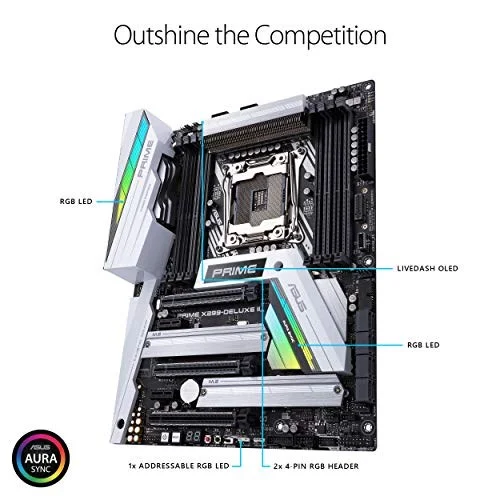

Unmatched Personalization With ASUS Exclusive AURA Sync RGB Lighting And Livedash OLED TO Give You The Option To Display System Stats Or Custom Graphics
Pre-Mounted IO Shield Reduces Installation Time And Increases Contact With Ports For Improved Connectivity

Manufacturer	ASUS
Model Number	PRIME X299-DELUXE II 90MB0ZB0-M0AAY0
Launch Date	October 2018
CPU Socket	LGA2066
Chipset Model	Intel X299
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3600 / DDR4-4000 / DDR4-4200 / DDR4-4266 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	1
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME X299-DELUXE II
SKU Code	PRIME X299-DELUXE II
GTIN / EAN	192876174630
