ASUS Prime X299-DELUXE LGA2066 ATX DDR4 128 GB Motherboard

Asus Motherboard $705

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA2066

ChipsetX299

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS Prime X299-DELUXE is a ATX motherboard for LGA2066. It supports DDR4 memory up to 4000 MT/s (OC).

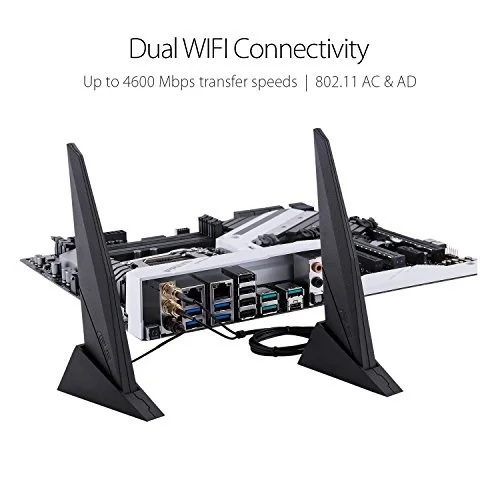

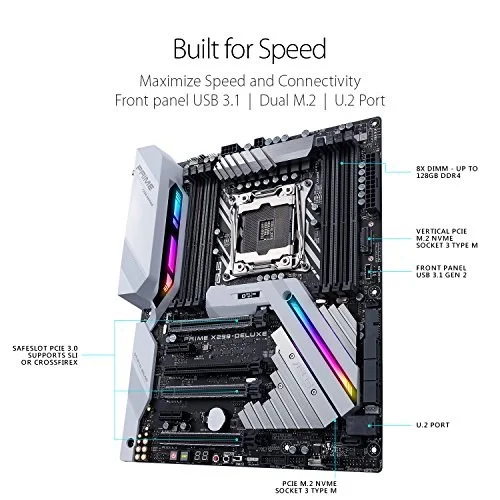

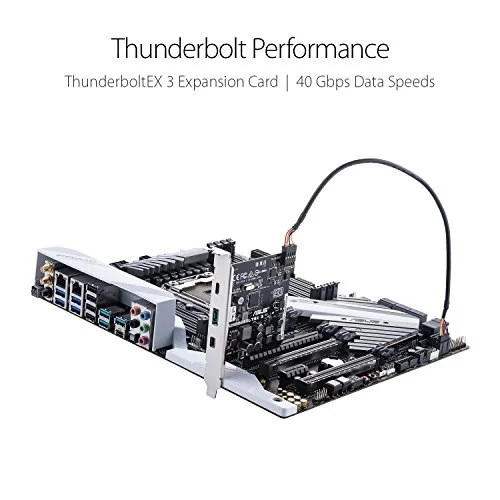

Designed for 7th generation LGA2066 socket Intel Core X-Series processors to maximize connectivity and speed with U.2 port, dual M.2, Thunderbolt EX 3, front panel USB 3.1, onboard 802.11AC/AD WIFI and Intel Optane Memory compatibility

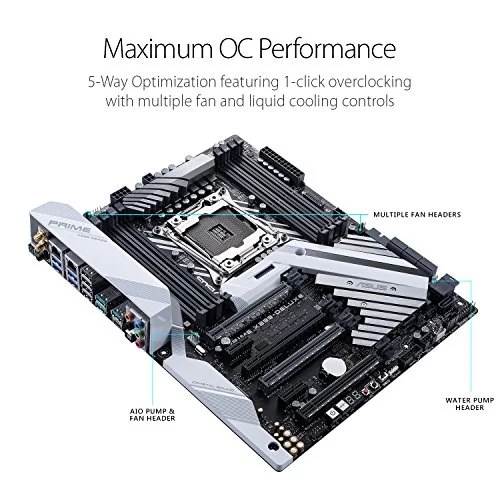

5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
Patent-pending SafeSlot (3X) features an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, additional RGB header and 3D-printing mounts to customize your build
Industry-leading 8-channel HD audio enhanced by ASUS exclusive Realtek S1220A featuring Crystal Sound 3 and driven by Japanese capacitors for warm, immersive sound

Manufacturer	ASUS
Model Number	PRIME X299-DELUXE 90MB0TY0-M0EAY0
Launch Date	June 2017
CPU Socket	LGA2066
Chipset Model	Intel X299
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3600 / DDR4-4000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	4 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	7 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5

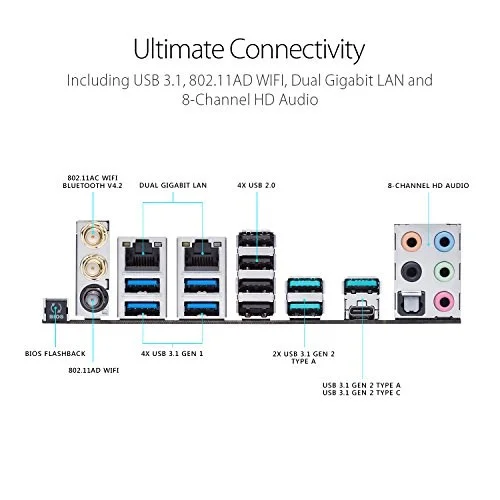

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME X299-DELUXE
SKU Code	PRIME X299-DELUXE
GTIN / EAN	889349763889
