Asus Prime X299 Edition 30

Asus Prime X299 Edition 30 LGA2066 ATX DDR4 256 GB Motherboard

Asus Motherboard $749.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA2066

ChipsetX299

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus Prime X299 Edition 30 is a ATX motherboard for LGA2066. It supports DDR4 memory up to 4266 MT/s (OC).

Intel X299 LGA 2066 Socket: Ready For The Latest Intel Core X-Series Processors To Maximize Connectivity And Speed With Up To Three M.2 Drives, USB 3.2 Gen 2, Thunderbolt 3, Intel VROC And Intel Optane Memory Compatibility
Robust Power & Cooling Solution: 16 IR3555 Power Stages, Procool II Connectors, Alloy Chokes And 10K Japanese-Made Capacitors For Stable Power Delivery, Skived-Fin Heatsink, Active Heatsink, M.2 Heatsinks, 2Oz-Pcb Design And Back Plates.
High-Performance Networking: Onboard Wi-Fi 6 (802.11Ax) With MU-MIMO Support, Aquantia 5 Gaps Ethernet And Intel Gigabit Ethernet

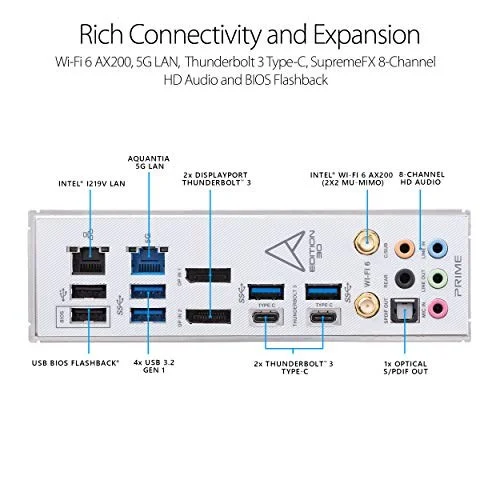

Next Gen Connectivity: Features Two Type-C Thunderbolt 3 With Displayport 1.4, Three M.2, Front 1X USB 3.2 Gen 2 Connector, 4X USB 3.1 Gen 2 Connectors And Multi- GPU Support.

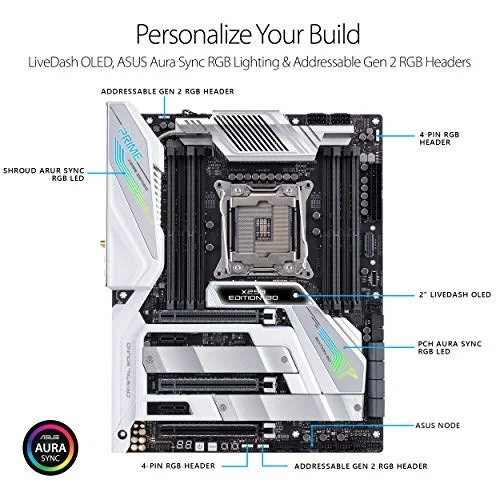

Unmatched Personalization: Livedash OLED And Exclusive AURA Sync RGB Lighting, Including RGB Headers And Addressable Gen 2 RGB Headers
Industry Leading Audio: High Fidelity Audio With Crystal Sound 3, DTS Sound Unbound For Pristine, Powerful Audio
Diy Friendly: Pre-Mounted I/O Shield, Flexkey, Asus Safe Slot, Asus Node Connector And BIOS Flashback For A Friendlier Building Experience
Ai Overclocking: Quickly Optimizes Your CPU Performance Based On The CPU And Cooler, Achieving Results That Are Extremely Close To Manual Tuning By Experts

Manufacturer	ASUS
Model Number	Prime X299 Edition 30 X299 Edition 30 90MB1190-M0EAY0
Launch Date	September 2019
CPU Socket	LGA2066
Chipset Model	Intel X299
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3600 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

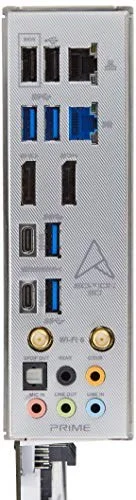

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	1
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Prime X299 Edition 30
SKU Code	Prime X299 Edition 30
GTIN / EAN	192876488577
