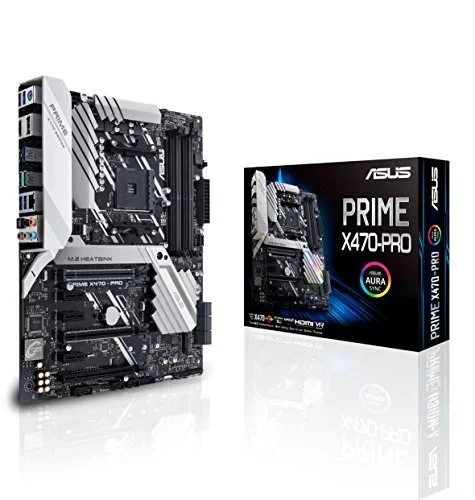

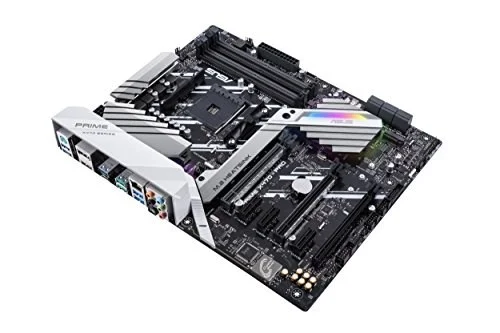

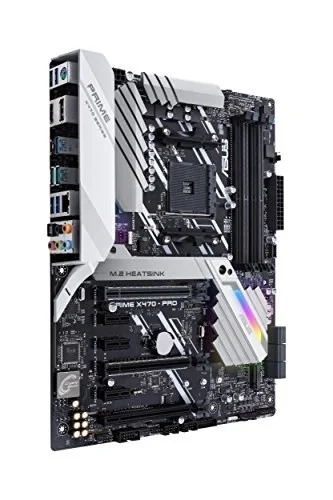

Asus Prime X470-Pro

Asus Prime X470-Pro AM4 ATX DDR4 64 GB Motherboard

Asus Motherboard $154.53

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX470

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus Prime X470-Pro is a ATX motherboard for AM4. It supports DDR4 memory up to 3466 MT/s (OC).

Powered by AMD Ryzen 2 AM4 and 7th generation Athlon processors to maximize connectivity and speed with NVMe M.2, front panel USB 3.1 Gen2 and Gigabit LAN
5-Way Optimization with auto-tuning and Fan Xpert 4 delivers advanced fan controls with an integrated AIO pump header for dynamic cooling
Patent-pending SafeSlot features an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
Aura Sync RGB lighting features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of AURA Sync enabled products
Industry-leading 8-channel HD audio with Realtek S1220A codec delivers a warm, full sound

Manufacturer	Asus
Model Number	Prime X470-Pro
Launch Date	April 2018
CPU Socket	AMD Socket AM4
Chipset Model	AMD X470
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Prime X470-Pro
SKU Code	Prime X470-Pro
GTIN / EAN	889349935101
