ASUS PRIME X570-PRO

ASUS PRIME X570-PRO AM4 ATX DDR4 128 GB Motherboard

Asus Motherboard $209.78

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS PRIME X570-PRO is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).

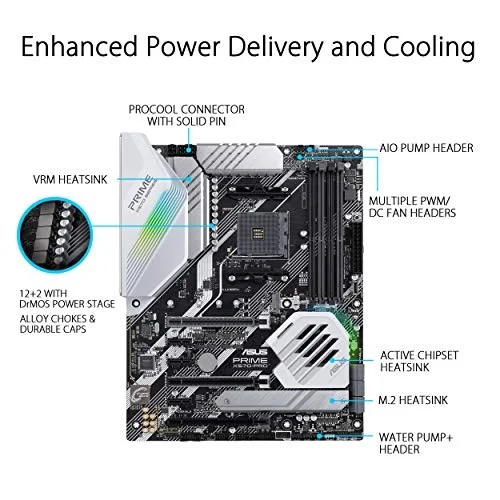

Enhanced power solution: premium components provide better power efficiency
5-Way Optimization: one-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or gpu-intensive tasks
Industry-leading cooling options: comprehensive controls for fans and dual pump headers, via fan Xpert 4 or the acclaimed UEFI
ASUS Optic-MEM: careful routing of traces and vias TO preserve signal integrity for improved Memory overclocking

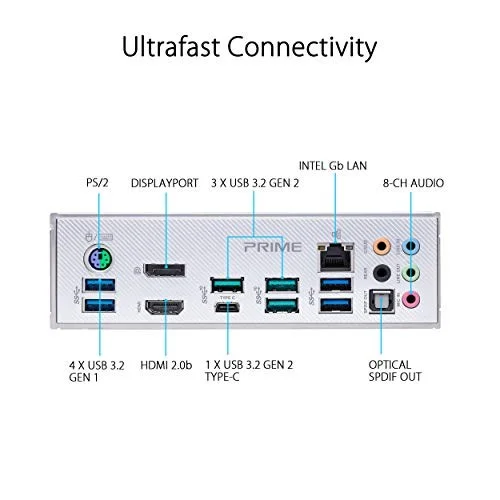

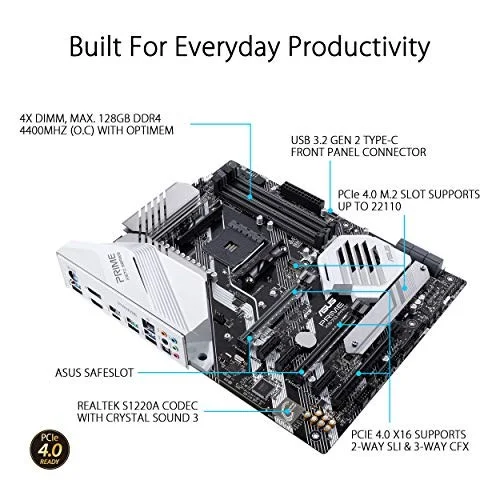

Next-gen connectivity: supreme flexibility With PCIe Gen 4 support, Dual M. 2 support, USB 3. 2 Gen 2 ports and front-panel header

Manufacturer	ASUS
Model Number	PRIME X570-PRO 90MB11B0-M0AAY0 90MB11B0-MVAAY0
Launch Date	July 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	3 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME X570-PRO
SKU Code	PRIME X570-PRO
GTIN / EAN	192876254011
