Asus PRIME X670-P WIFI

Asus PRIME X670-P WIFI AM5 ATX DDR5 192 GB Motherboard

Asus Motherboard $139.19

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetX670

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

Seller	Shipping	Price
	-	N/A Visit Store
	-	N/A
	-	N/A
	-	N/A

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

Overview

The Asus PRIME X670-P WIFI is a ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

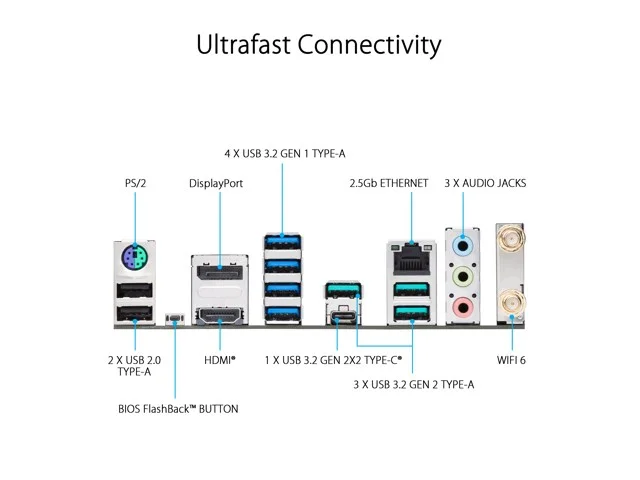

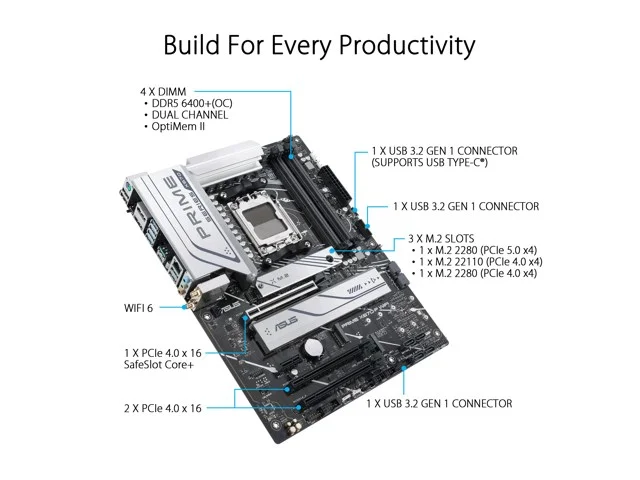

Specification:CPUAMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors ChipsetAMD X670Memory4 x DIMM, Max. 128GB, DDR5 5600MHz up to 6400MHz(OC) Supports AMD EXTended Profiles for Overclocking (EXPO)Onboard Graphics Outputs1 x DisplayPort1 x HDMI port PCI Slots AMD Ryzen 7000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD X670 Chipset: 2 x PCIe 4.0 x16 slots (support x4 mode) v 1 x PCIe 3.0 x1 slot Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD X670 Chipset: M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Networking1 x Realtek 2.5Gb EthernetWi-Fi 6BluetoothAudioRealtek 7.1 Surround Sound High Definition Audio CODECConnectivity 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port Internal Ports Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related: 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous: 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt header Form FactorATX Form Factor - 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Specifications

Manufacturer	Asus
Model Number	PRIME X670-P WIFI 90MB1BV0-M0AAY0 90MB1BV0-MVAAY0
Launch Date	N/A
CPU Socket	AM5
Chipset Model	Intel X670
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME X670-P WIFI
SKU Code	PRIME X670-P WIFI
GTIN / EAN	195553884587
