Asus Prime Z370-P

Asus Prime Z370-P LGA1151 ATX DDR4 64 GB Motherboard

Asus Motherboard $177.87

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetZ370

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

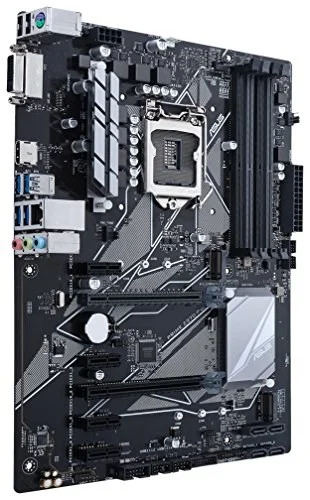

The Asus Prime Z370-P is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4000 MT/s (OC).

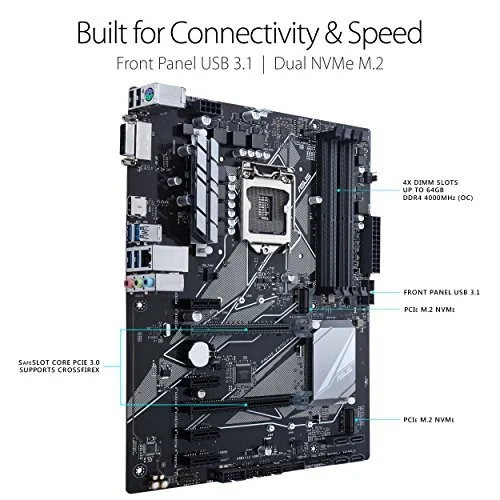

Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with Dual M.2, USB 3.1 Gen1 and Intel Optane Memory compatibility

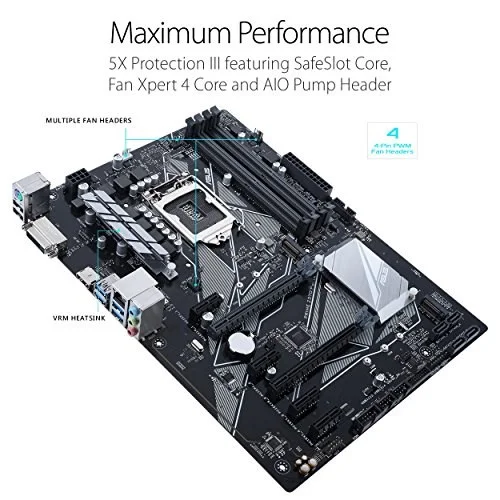

5X Protection III Hardware-level safeguards with Safe Slot Core, LANGuard and Overvoltage Protection provide component longevity and reliability
Patent-pending Safe Slot Core fortifies PCIe slots preventing damage caused by heavyweight GPUs
FanXpert 4 Core with AIO Pump Header delivers advanced fan control for dynamic system cooling
8-channel HD Gaming Audio featuring Realtek ALC887 high definition audio codec

Manufacturer	Asus
Model Number	Prime Z370-P
Launch Date	May 2018
CPU Socket	LGA1151
Chipset Model	Intel Z370
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 4 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	4
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A

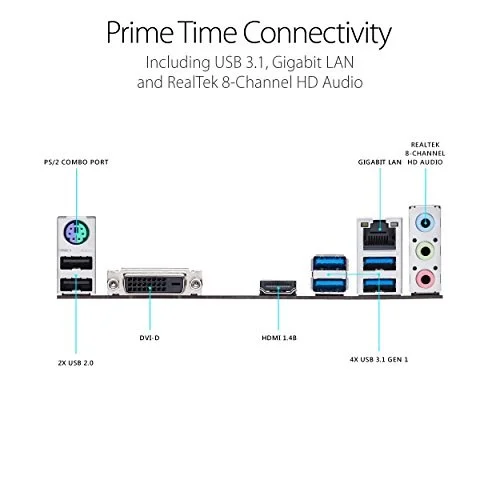

Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Prime Z370-P
SKU Code	Prime Z370-P
GTIN / EAN	889349853559
